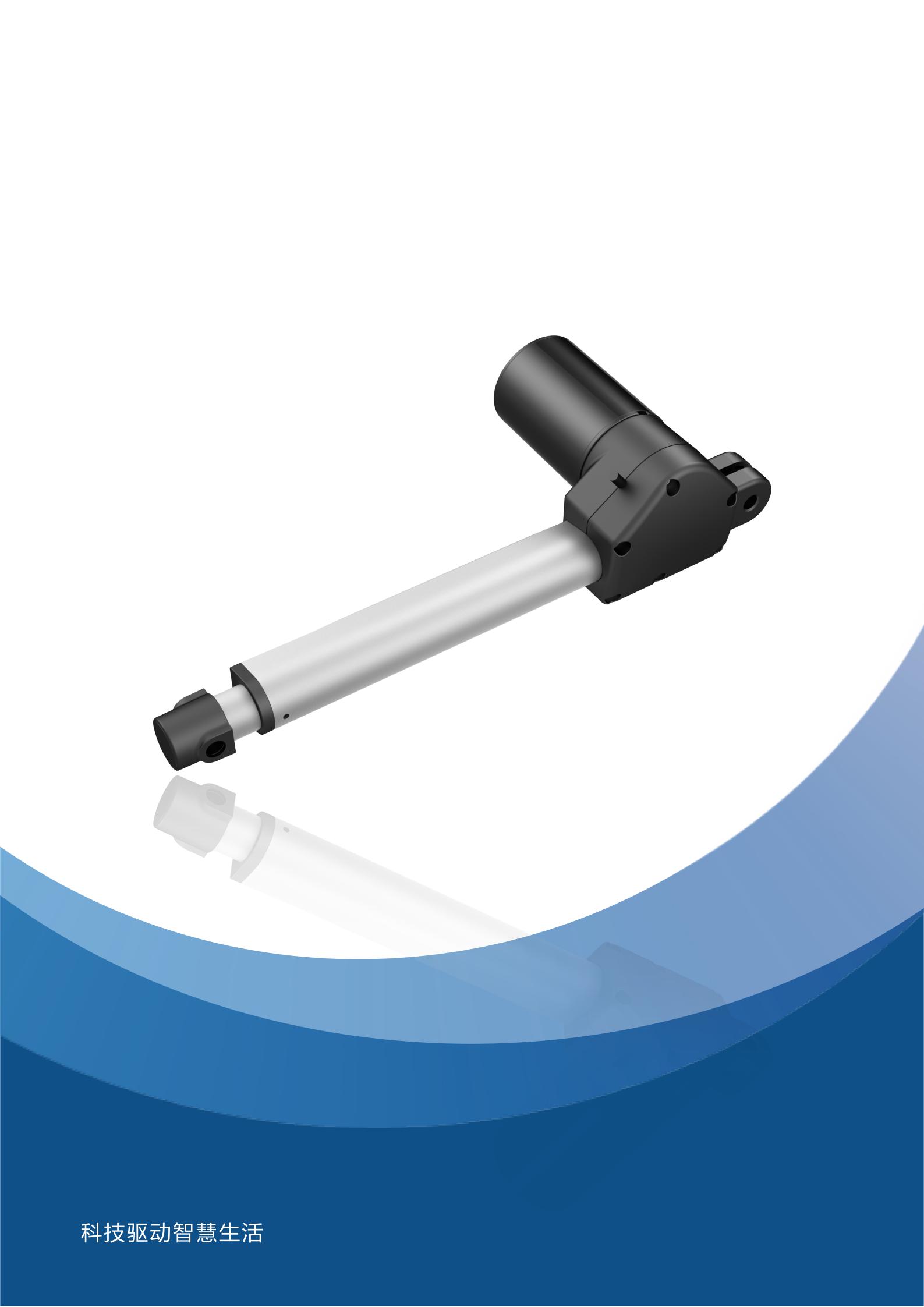

JTM35L16

Features:

1.Dynamic load push:6000N

2.Colour: Black

3.IP grade: IP21

4.Motor: 29 V DC

5.Stroke length: 50-300mm (6000N)

6.Retracted length:

      L≥S+150(50≤S≤200)

      L≥S+160(200＜S≤300)

7.Noise level: ≤46dB (Ambient Noise ≤38dB)

8.Hall sensor: Optional

9.Anti-pitch: Optional

10.Built-in switch: power switch

11.Weight: 1.5kg

12.Static bending moment: no lateral load is allowed

13.Flame retardant grade: UL94V-0



Specifications：

Input voltage (VDC）	Spindle Pitch (mm)	Maximum load （N）	Self-locking load (N)	speed at 0/Full Load  （mm/s）	Speed at Full Load  (A)	Current at Full Load  (A)
29	3	6000	6000	4.5	3.3	3.5
