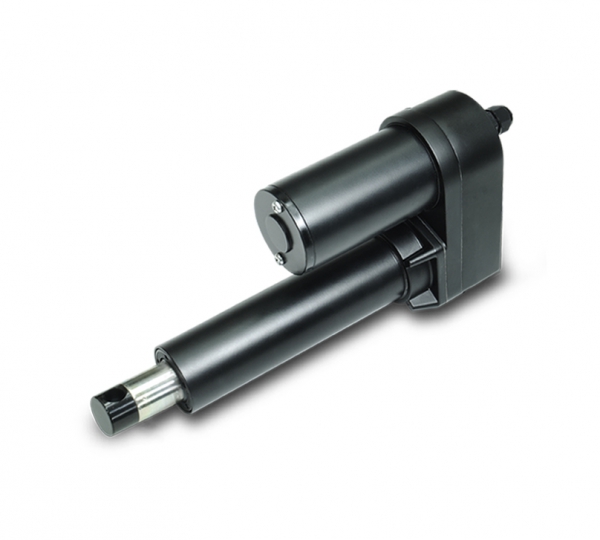

Topmedi Linear Actuator TMID10G

Description

TMID10G has similar appearance and waterproof performance as ID10. It adopts ACME lead screw design to achieve a maximum push-pull force of 9,000N and high speed, which is a good value actuator. For applications in various industrial fields, agriculture and construction machinery, ID10G is a very competitive and good choice when high speed and high load capability are required.

Technical information

· Input voltage: 12 / 24V DC

· Max. rated load: 9,000N

· Max. static load: 18,000N

· Max. speed at no load: 14mm/sec (typical value)

· Stroke: 102 / 153 / 203 / 254 / 305 / 457 / 610mm

· IP level: IP65

· Overload protection by clutch

· Spindle type: ACME

· Extension tube material: Iron

· Color: Black

· Power and signal cord length: 250mm (with tinned wires)

· Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

· Operating ambient temperature: -25°C ~ +65°C

Option

· Positioning signal feedback with Hall effect sensor x 1

· Analog and absolute positioning feedback with Potentiometer (POT)

· Limit switches
