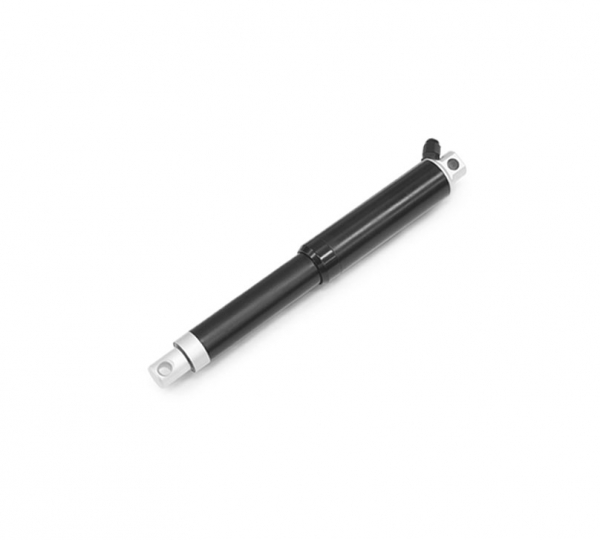

Topmedi Linear Actuator TMLD12

Description

The TMLD12 actuator has a tubular in-line shape with no obtrusive parts and is especially useful for applications with tight installation spaces. In addition to the high IP rating, a full body SUS304 stainless steel option is also available. It is suitable for automation industries such as shipbuilding and food engineering.

Technical information

· Input voltage: 12V DC / 24V DC

· Max. load: 1500N (Push / Pull)

· Max. static load: 1800N

· Speed at no load: 17.4mm/sec (typical value)

· Speed at full load: 5mm/sec (typical value @1500N loaded)

· Stroke: 50 / 100 / 150 / 200 / 250 / 300 / 350 / 400mm

· IP level: IP66, IP69K

· Material: All stainless steel “SUS304” / Black coating steel case

· Duty cycle:10%, max. 2 min. continuous operation in 20 min.

· Operating ambient temperature: -20°C ~ +70°C

· Certified: CE Marking, Electromagnetic Compatibility Directive 2014/30/EU

· Option: Positioning signal feedback with Hall effect sensor x 2

Option

· Positioning signal feedback with Hall effect sensor x 2
