Topmedi Linear Actuator TMID12

Description

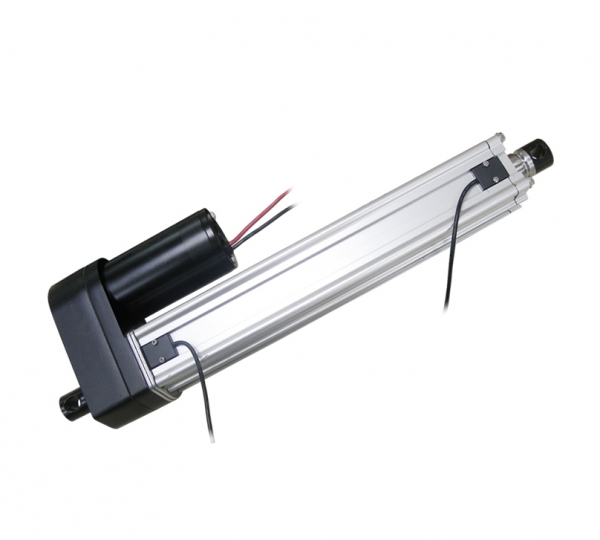

TMID12 compact electric linear actuator has the same performance of load capability, speed, and power consumption as TMID10. However, TMID12 features its square outer tube, which makes it easy to install and apply the external reed sensor on demand.

Technical information

· Input voltage: 12 / 24 / 48V DC

· Max. rated load: 3,500N (ACME) / 7,000N (Ball Screw)

· Max. static load: 4,500N (ACME) / 13,600N (Ball Screw)

· Max. speed at no load: 72.1 mm/sec (Typical value)

· Stroke: 100 / 150 / 200 / 300 / 450 / 600mm

· IP Level: IP66, IP69K

· Overload protection by clutch

· Aluminum outer tube

· Stainless steel extension tube

· Color: Black gearbox and motor

· Power cord length: 250mm (with bare wires)

· Duty cycle: 25%, max. 2 min. continuous operation in 8 min.

· Operating ambient temperature: -25°C ~ +65°C

· Certified: CE Marking, EMC Directive 2014/30/EU

Option

· Positioning signal feedback with Hall effect sensor x 1

· Analog and absolute positioning feedback with Potentiometer (POT)

· Preset limit switches (LT), to stop motor automatically at both stroke ends by cutting power.

· External adjustable reed sensor. NC-type ( i.e. normal close) is default. And NO-type (i.e. normal open) is also available, please indicate to sales window if required.

· Manual drive socket (MD, can be driven by hand with a 8 mm hex bit screwdriver or electric screwdriver)

· Mounting bracket (MB30)
