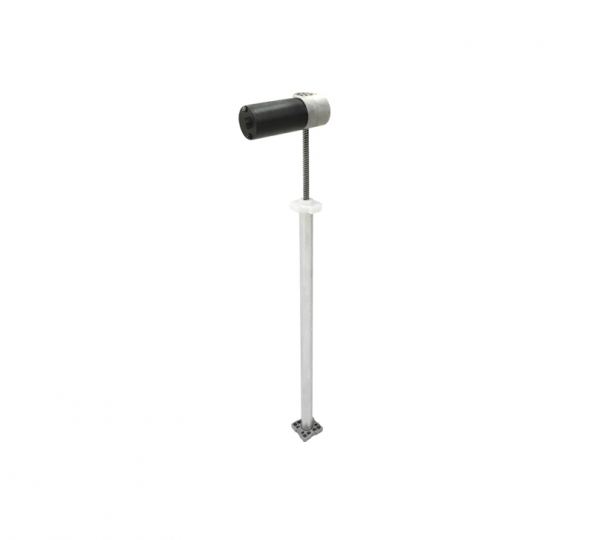

Topmedi Linear Actuator TMDKL2

Description

TMDKL2 is a 2-part leg with 2 stage telescope tube mainly used for electric height adjustable desks. With fully integrated of motor and spindle, it allows the producers design their own style of outer tube easily and flexibly.

Technical information

· Input voltage: 24~32V DC

· Max. push load: 1000N

· Typical speed at no load: 33 mm/sec

· Typical speed at full load: 17 mm/sec (1000N load)

· Stroke: 460 mm

· Life cycle: More than 10,000 cycle under full load

· Positioning feedback with dual Hall effect sensors

· IP Protection level: IP20

· Noise level: ≦50dB

· Duty cycle: 10%, max. 1 min. continuous operation in 10 min.

· Certified: CE Marking, EMC Directive 2014/30/EU

· UL 962 Standard for Household and Commercial Furnishings.

Option

· Power cord length: 1200, 2000 mm
