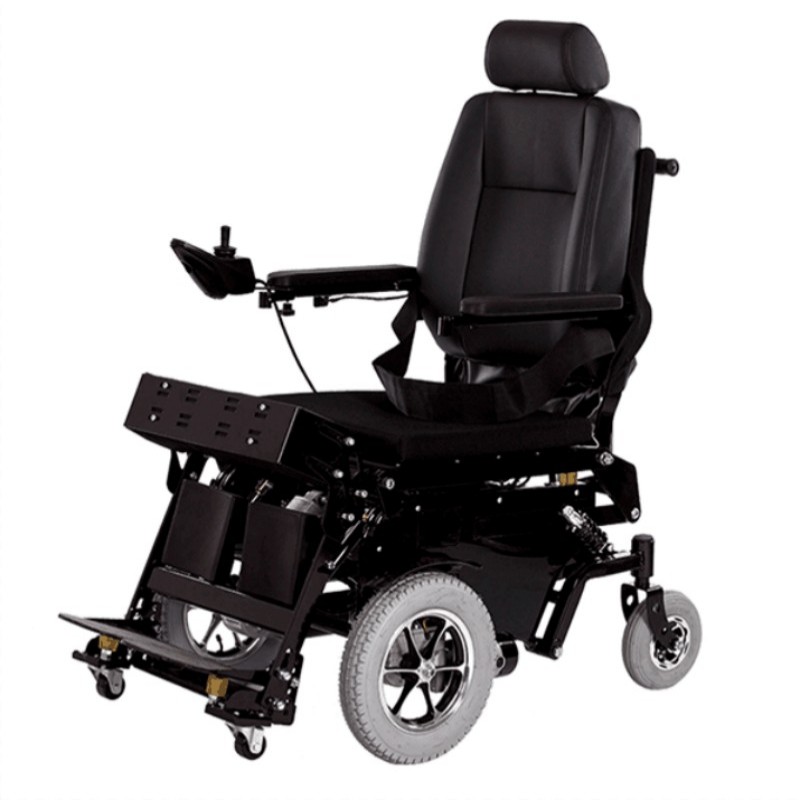

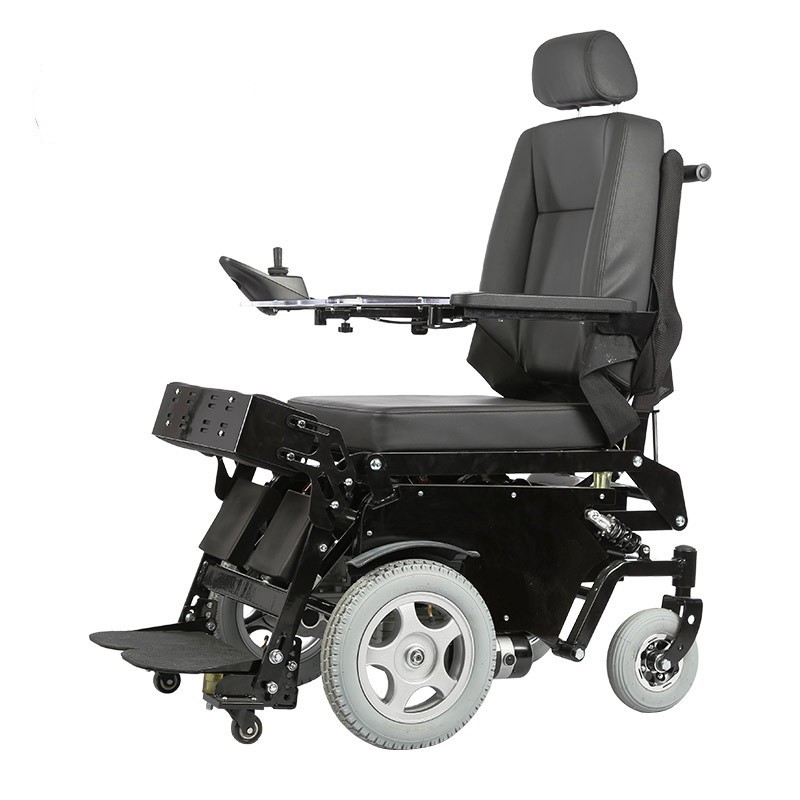

TEW119 Multi-Functional Handicapped Electric Reclining Leg Adjustable Stand up Wheelchair
description1
Product Details
The TEW119 multi-functional electric rehabilitation wheelchair is Topmedi's profound interpretation of its philosophy of " providing suitable rehabilitation solutions for users worldwide ." It is a comprehensive tool that promotes rehabilitation, enhances dignity, and ensures safety . For users who aspire to regain their ability to stand, require comfortable sitting for extended periods, or need to undergo scientific rehabilitation training, the TEW119 is a reliable choice for achieving a leap in quality of life.
We believe that every stable standing and every comfortable recline is an important step towards a more independent life. For more details, configuration options, or professional adaptation advice, please contact the Topmedi team immediately.

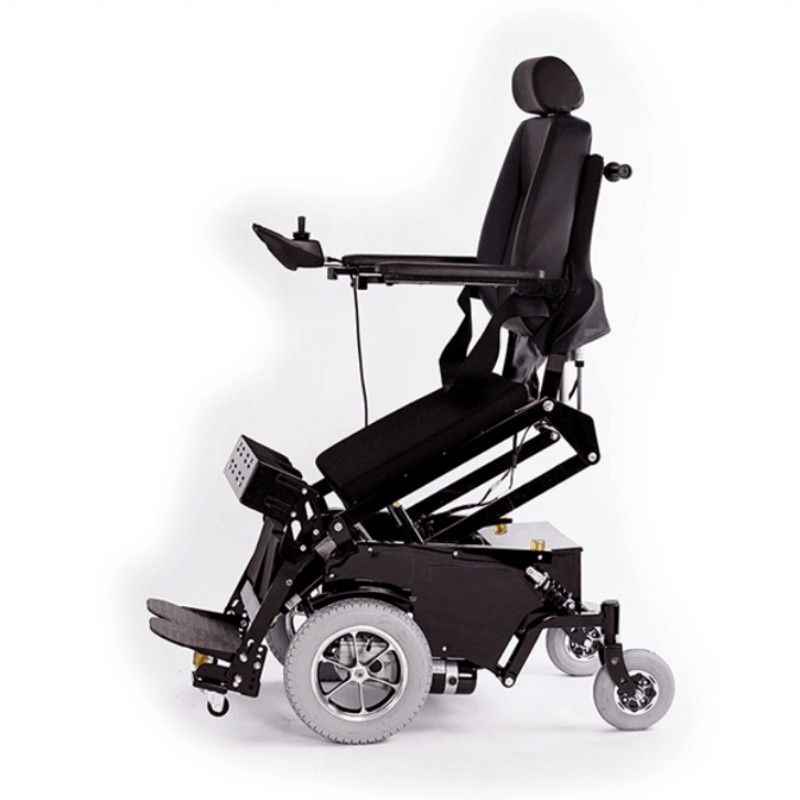

Assisted standing
The TEW119 standing wheelchair allows patients to stand upright, smoothly transitioning them from a sitting to a standing position. This not only significantly promotes blood circulation, slows muscle atrophy, and improves cardiopulmonary function, but also enables users to communicate at eye level, reach high items, and perform counter operations, regaining a sense of participation in daily life and psychological confidence. As a professional assistive tool for rehabilitation training, it allows users to conduct standing training under safe and controlled conditions, providing scientific support for the gradual recovery of physical function.

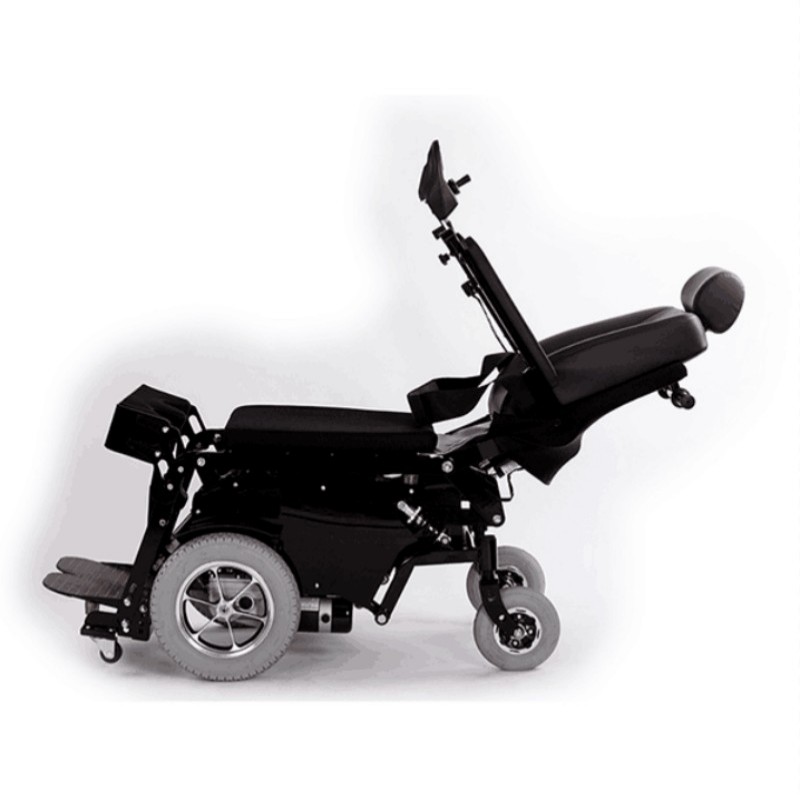

reclining at a large angle
This electric wheelchair supports a maximum electric backrest angle adjustment of 80° , allowing patients to recline at a large angle, completely distributing pressure on the hips and back , and effectively preventing bedsores. The high backrest design provides all-around support for the patient's head.
Safety Guarantee
The TEW119 wheelchair features leg and waist straps, greatly ensuring patient safety and preventing tipping. Weighing 115KG, this wheelchair boasts exceptional stability and a maximum load capacity of 120KG, catering to the needs of obese individuals.
Dual power guarantee
Equipped with two 250W high-efficiency worm gear motors from Taiwan, it not only operates quietly and has ample torque, ensuring a smooth and stable ride without jamming when standing or lying down, but also provides reliable climbing and obstacle-crossing capabilities.
|
Feature
|
Specification
|
|
Driving rang
|
20-30KM
|
|
Max speed
|
6km/h
|
|
Motor
|
250w * 2pcs Taiwan motor with Worm and worm wheel mechanism to transfer sports and power
|
|
Battery
|
24V 32AH lead acid battery
|
|
Control
|
New Zealand dynamic controller
|
|
Parking brake
|
Electromagnetic brake
|
|
Frame material
|
steel
|
|
Backrest adjustable angle
|
60°/80°
|
|
Overall width
|
63.0
|
|
Overall Length
|
111.0
|
|
Overall Height
|
128.0
|
|
Seat Width
|
45.0
|
|
Seat Height
|
51.0
|
|
Seat Deepth
|
50.0
|
|
Speed
|
6km/h
|
|
Drive distance
|
20-30km
|
|
Real wheel dia.
|
8"
|
|
Front wheel dia.
|
12"
|
|
Loading capacity
|
120kg
|
|
Carton size
|
106*70*130
|
|
N.W.
|
115kg
|
|
G.W.
|
125 kg
|
|
20 ' FCL
|
25.0
|
|
40' HQ FCL
|
70.0
|
