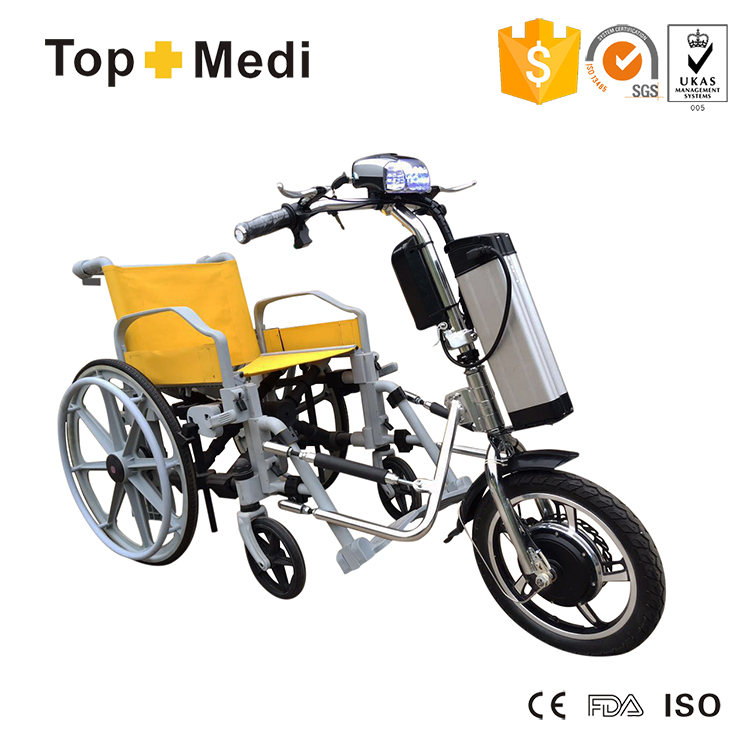

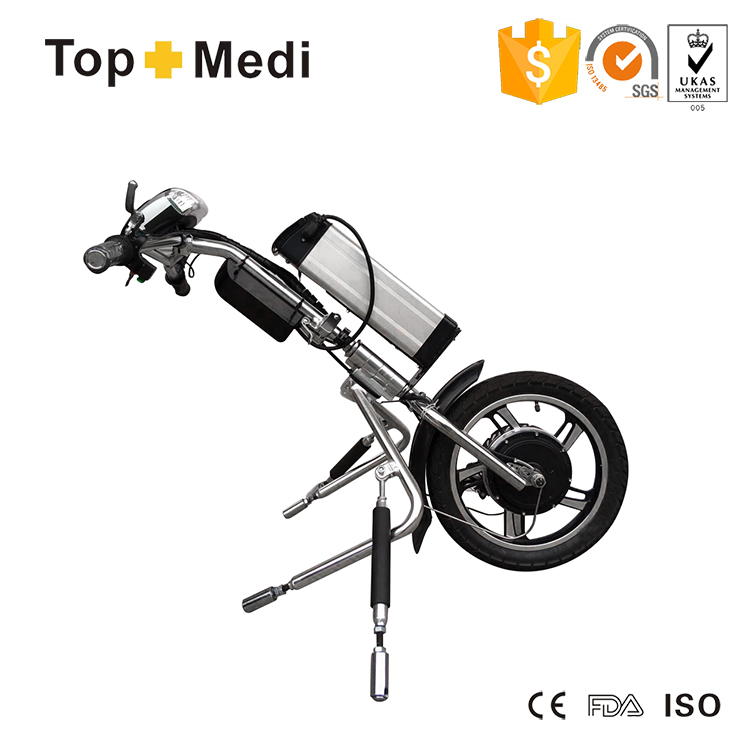

TEW003 Power Wheelchair Trailer
2017-09-05handler8999
Model:TEW003
Description:
1. Power drive wheelchair trailer

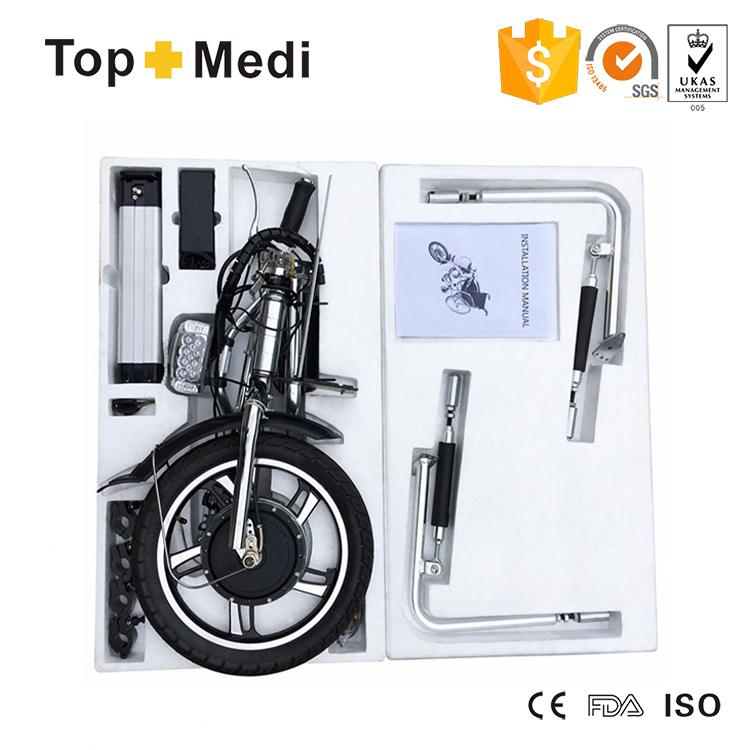

2. Easy Install and detach electric track wheelchair trailer
3. Lithium battery
4. 25km/h max speed
5. Running distance can be more than 20 km.
6. Can move forward and backward, can climb slop, can cross bumps or obstacle.
7. At present, this product has been authorized in Singapore, Thailand, Portugal, the United States, France, Brazil, Malaysia.
| Specifications | |
| Motor | 36V 350W Gearless Brushless Aluminum-alloy hub motor |
| Battery | 36V 10.4 Ah Lithium battery (weight 3.3Kg) |
| Brake | Electrical and Disc brake |
| Tire | 16" x 2.125" pneumatic tire |
| Max Speed | 25 km/h |
| Reverse Speed | 8 km/h |
| Range | ≥20km ( 10% hills, 70kg carry ), bigger battery offers longer range |
| Charger | AC 85V-240V 50Hz/60Hz 2A (CE Rohs Cert. ) |
| Charge time | 5 hours |
| Max loading weight | 100KG |
| Obstacle crossing | ≥80mm |
| Cross bumps ability | 80mm |
| Climbing ability | ≤8° |
| Min turning radius | 1200mm |
| NW | 14 kg without battery (17.5 kg with battery ) |
| GW | 17 kg without battery ( 21 kg with battery) |
| Packing | 92x52*30 CM Carton (80% CK |
