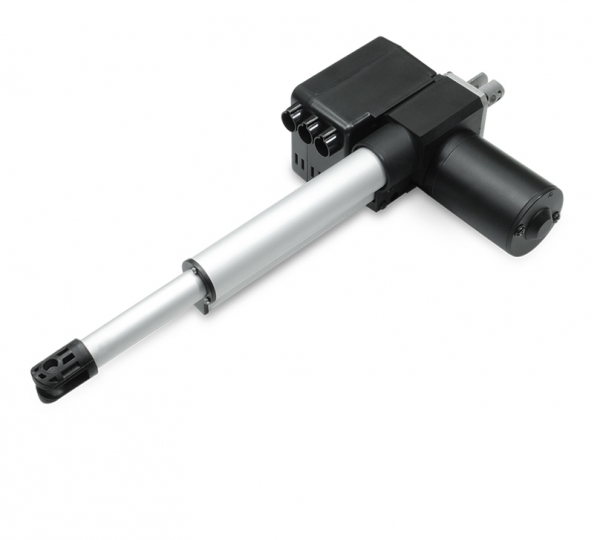

Topmedi Linear Actuator TMFD60

Description

TMFD60 is a quiet and powerful actuator up to 6000N thrust, designed for use in furniture application. Our T-control box, which can be perfectly attached and integrated to FD60, is available for customers to choose.

Technical information

· Input voltage: 12V DC / 24V DC

· Max. load: 6000N (push) / 4000N (pull)

· Speed at no load: 33.3mm/sec (typical value)

· Speed at full load: 2.9mm/sec (typical value @6000N loaded)

· Stroke: 50 ~ 300mm

· Noise level: ≦50dB

· IP level: IP42

· Preset limit switches

· Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

· Operating ambient temperature: -20°C ~ +65°C

· Certified: CE Marking, EMC Directive 2014/30/EU, UL 962 Standard for Household and Commercial Furnishings.

Option

· Positioning signal feedback with Hall effect sensor x 1

· Positioning signal feedback with Hall effect sensor x 2

· Mechanical push only extension tube

· Mechanical brake
