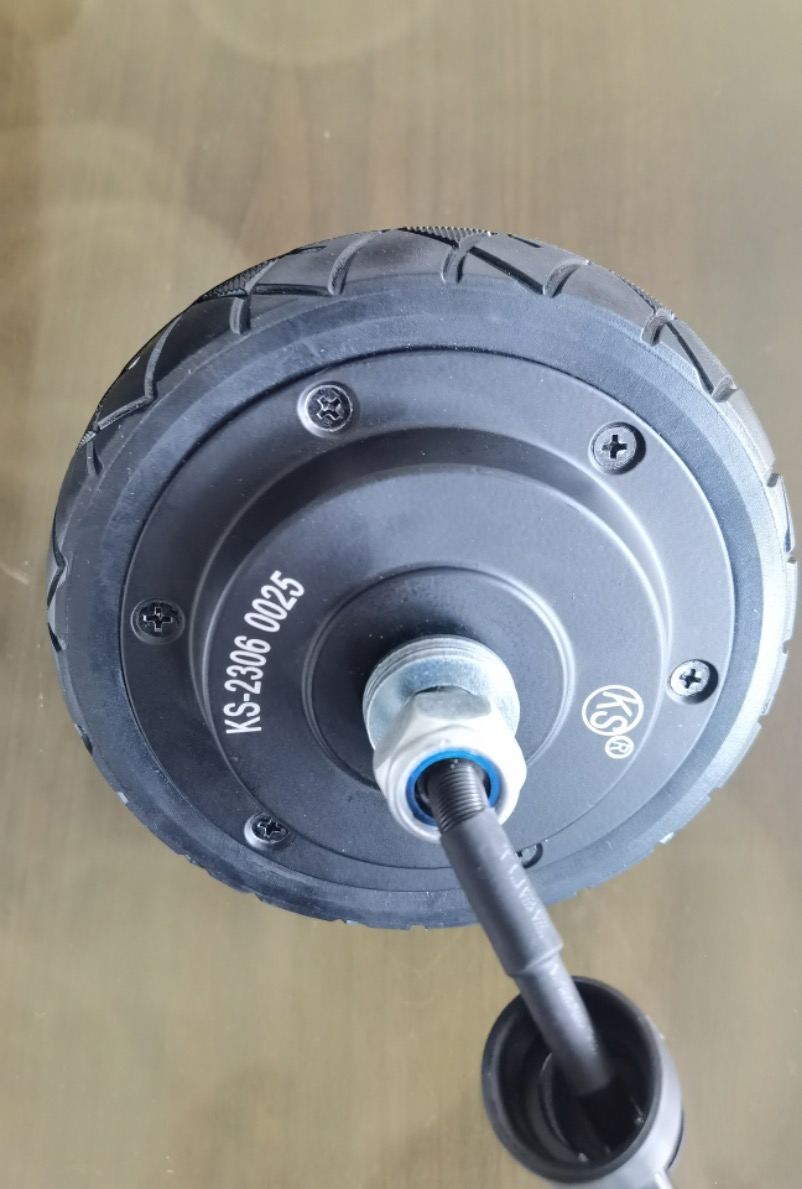

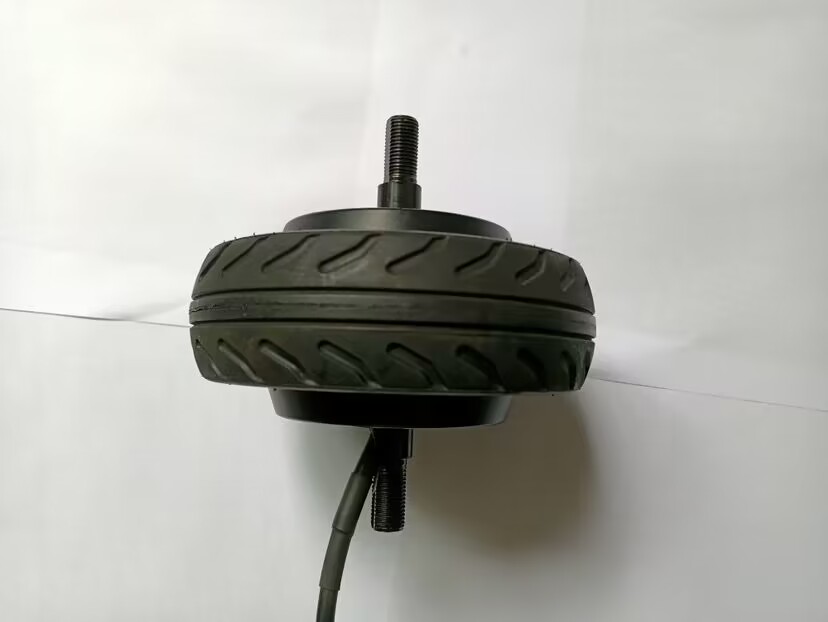

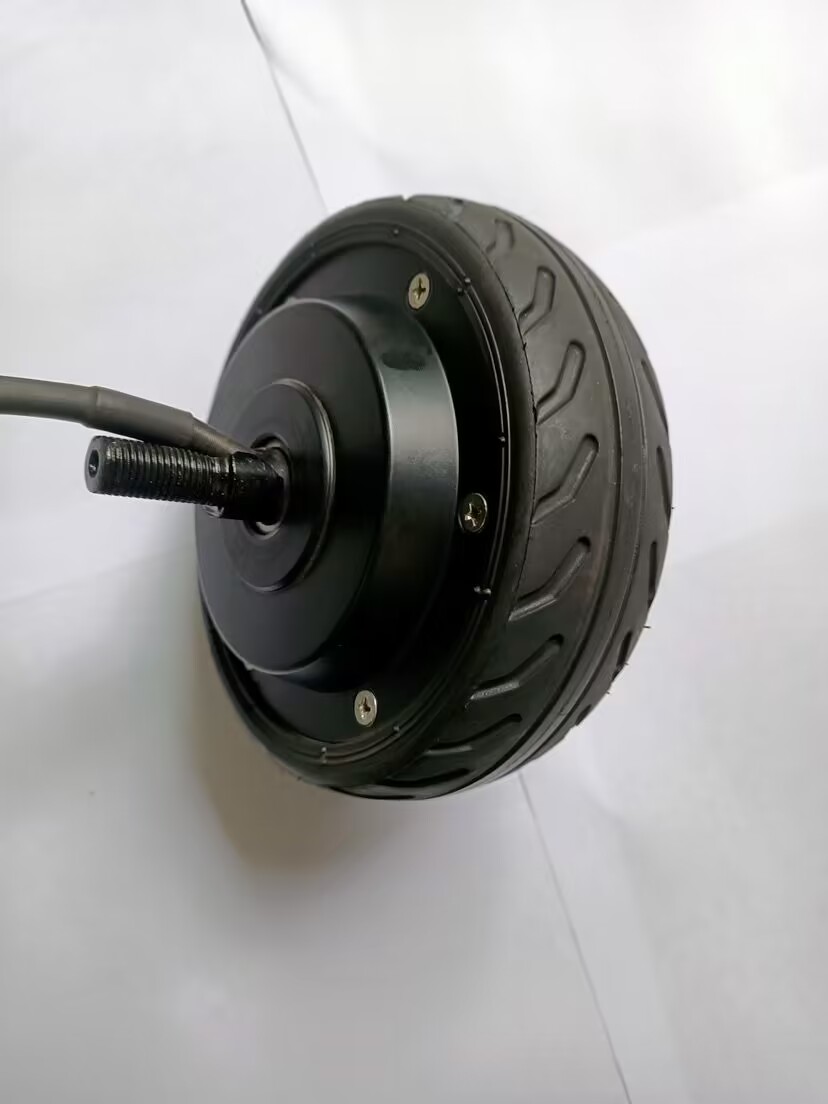

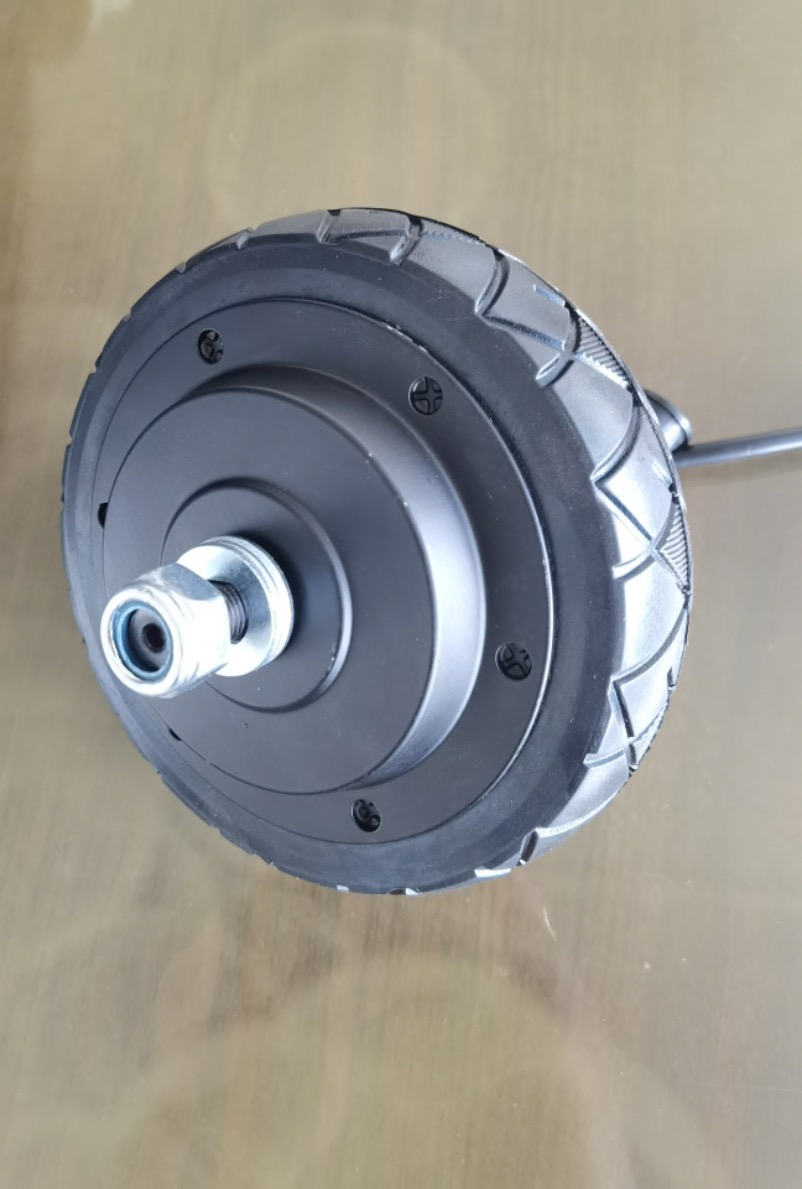

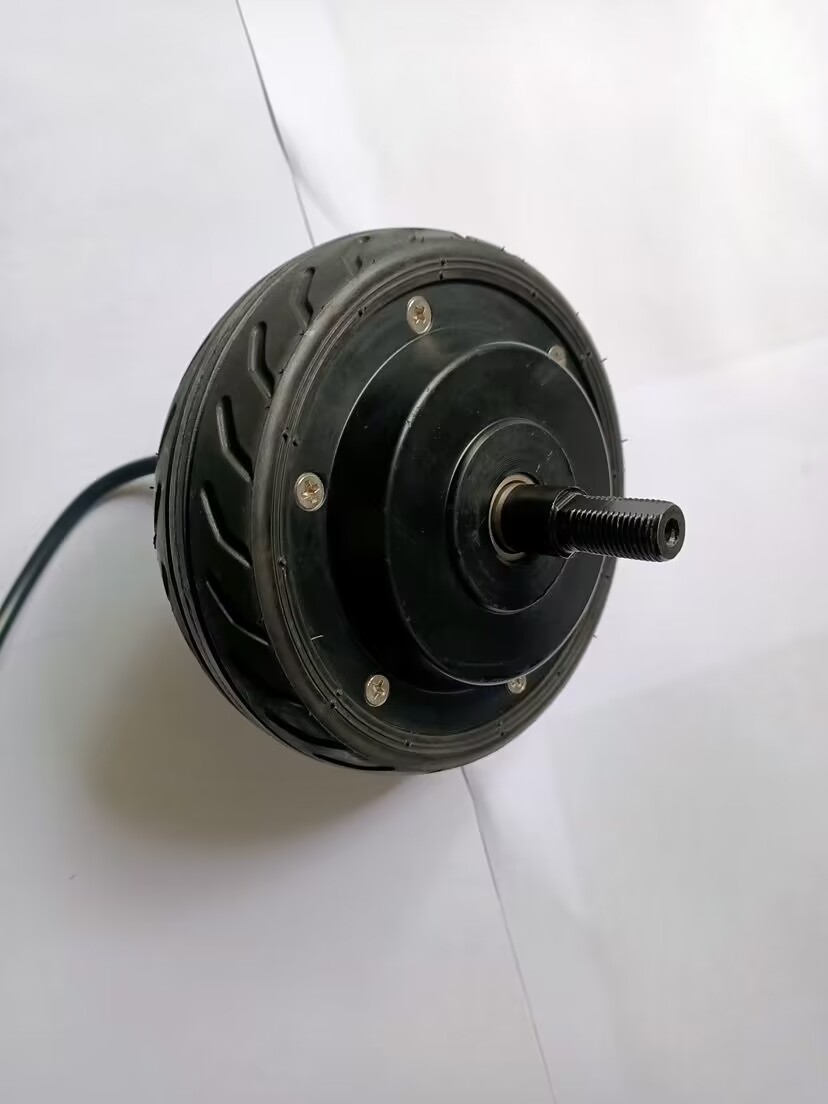

Brushless Motor 001

Installation method: single axis/double axis

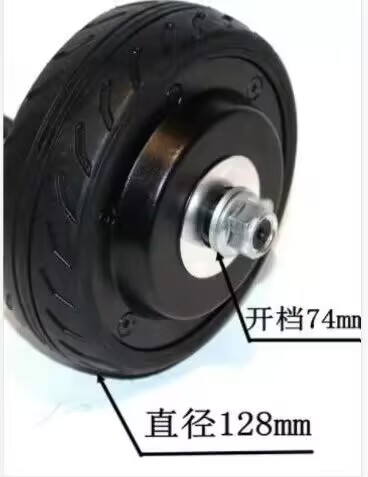

Tire diameter (mm): 106 ± 2

Cable length (mm): 600 ± 50

Voltage (v): DC24

Output power (w): 100

Rated torque (Nm): 2

Maximum torque (Nm): 6

Rated speed (rpm): 450 ± 10

Maximum speed (rpm): 550 ± 10

Rated current (A): 5

Maximum current (A): 15

Applicable environment: -20~+40 ℃

Number of magnetic steel poles: 10

Encoder: optical encoder

Tires: Rubber

Motor weight: single axis 1.45kg/dual axis 1.5kg

Motor waterproof: IP54

Motor load capacity: 50kg/2

Control system: matching servo controller
