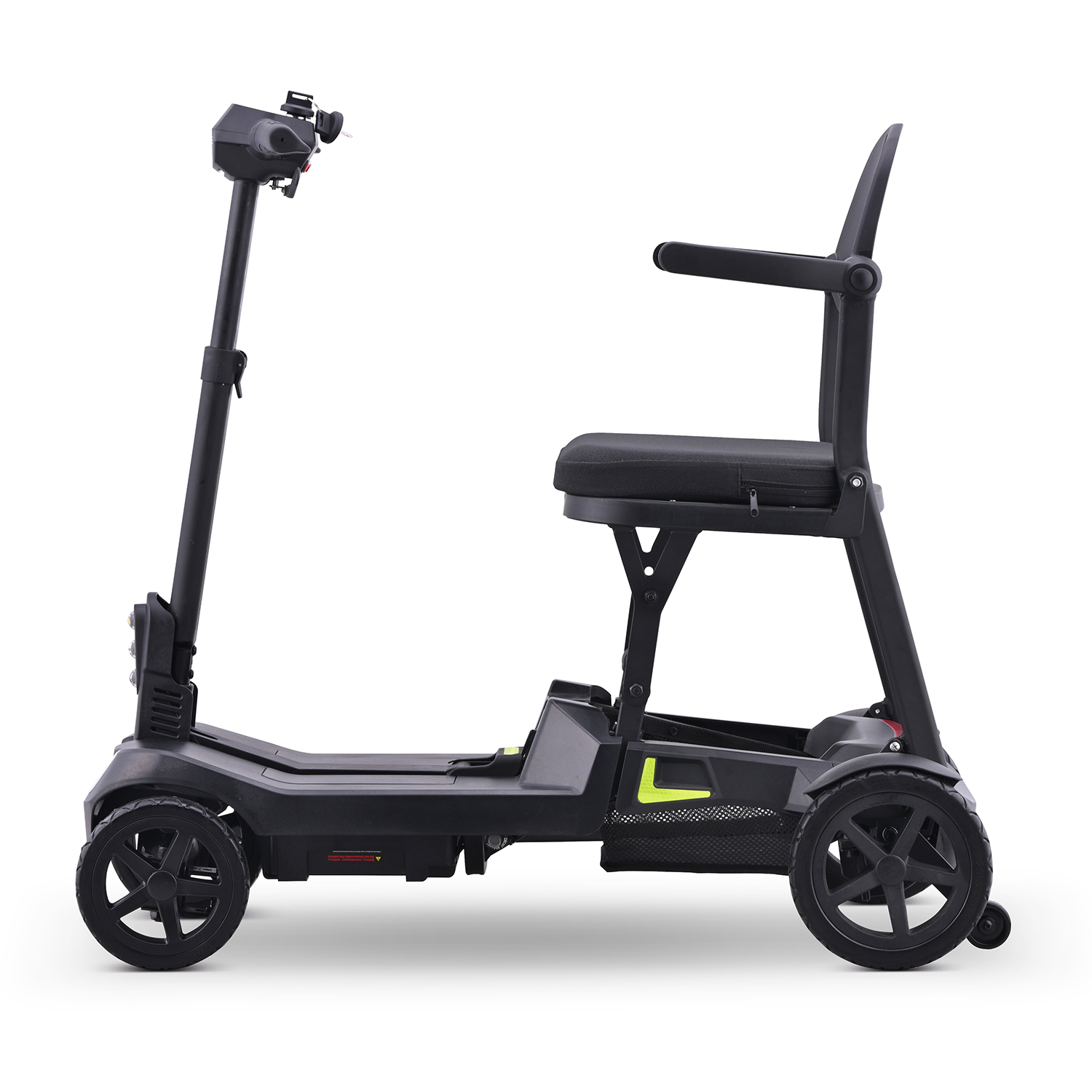

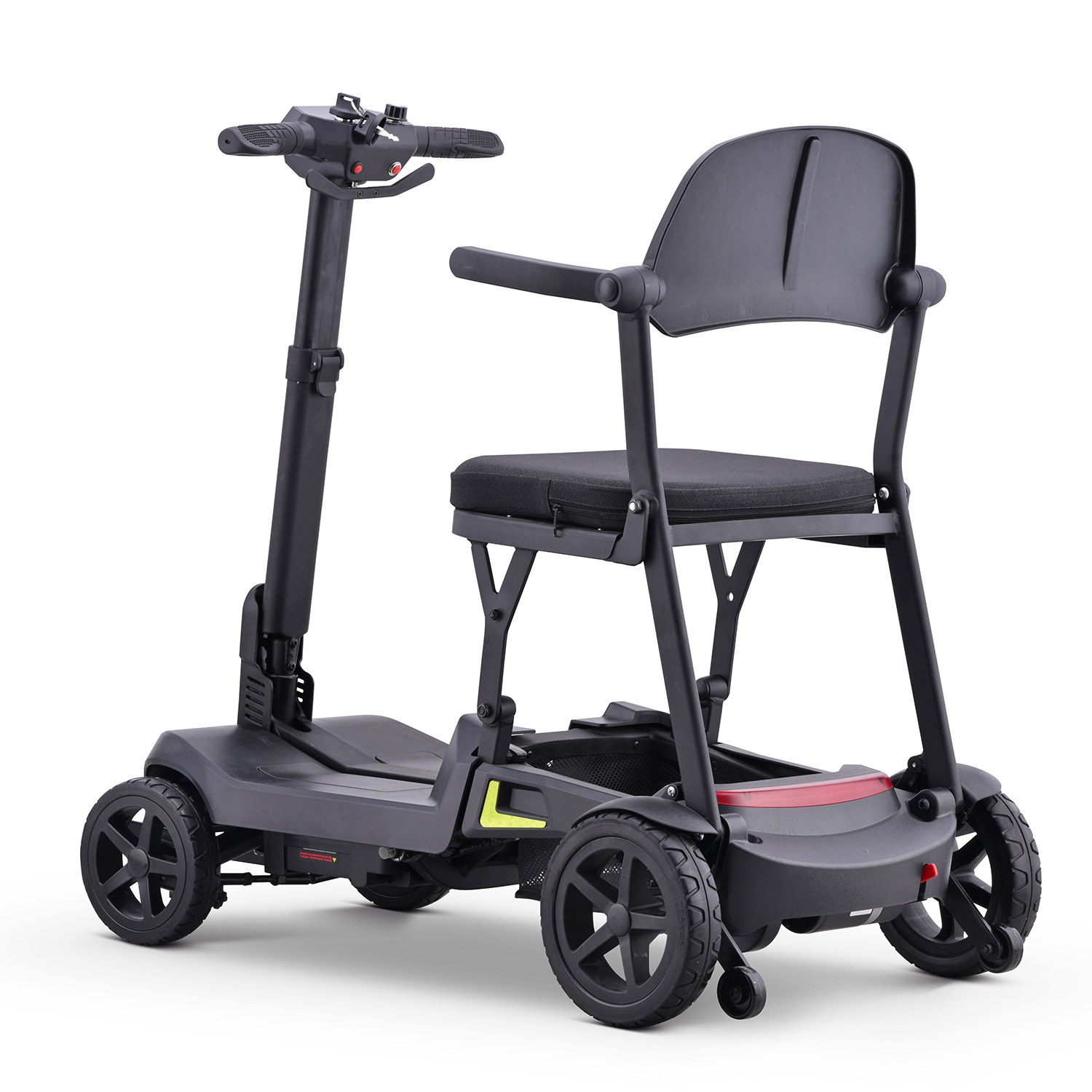

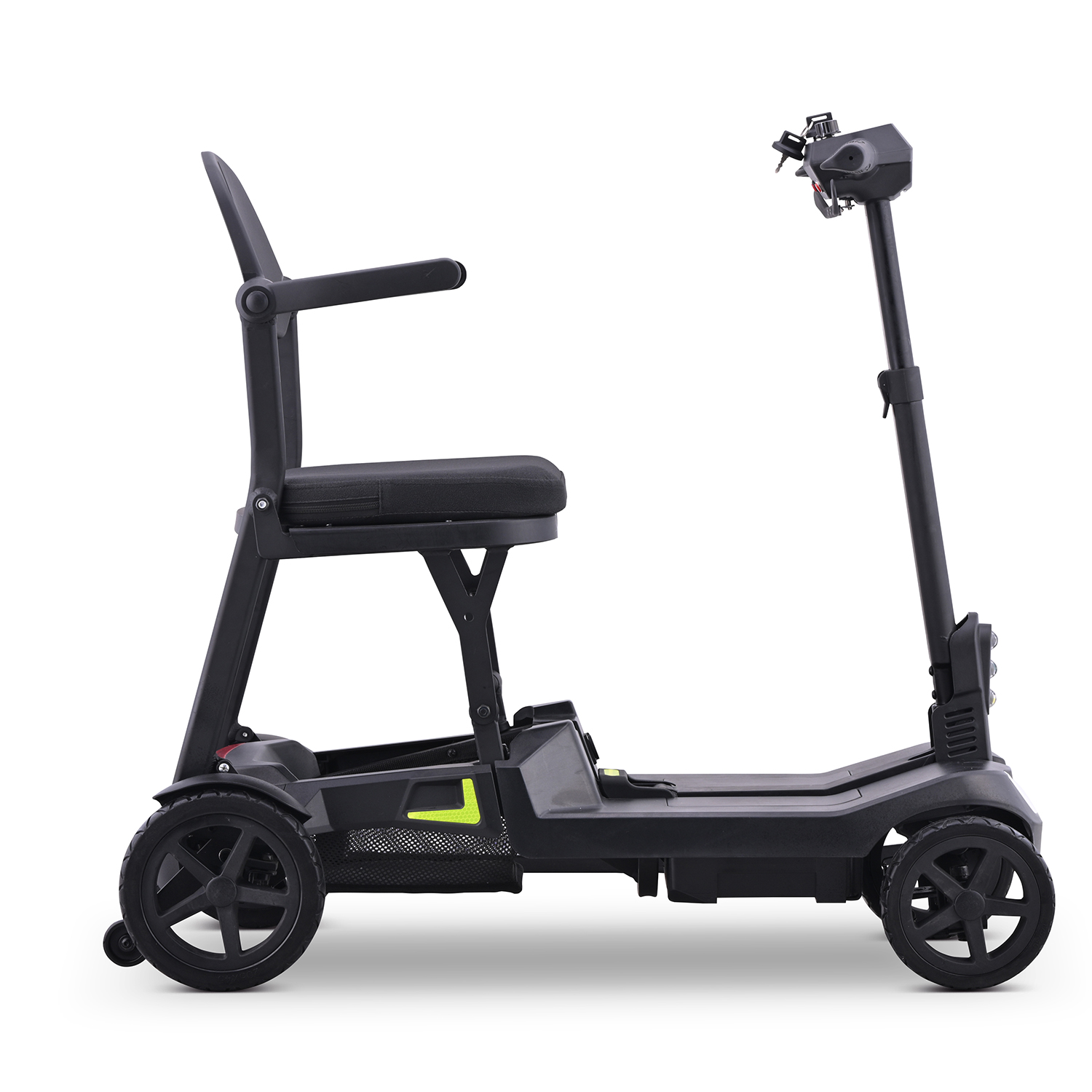

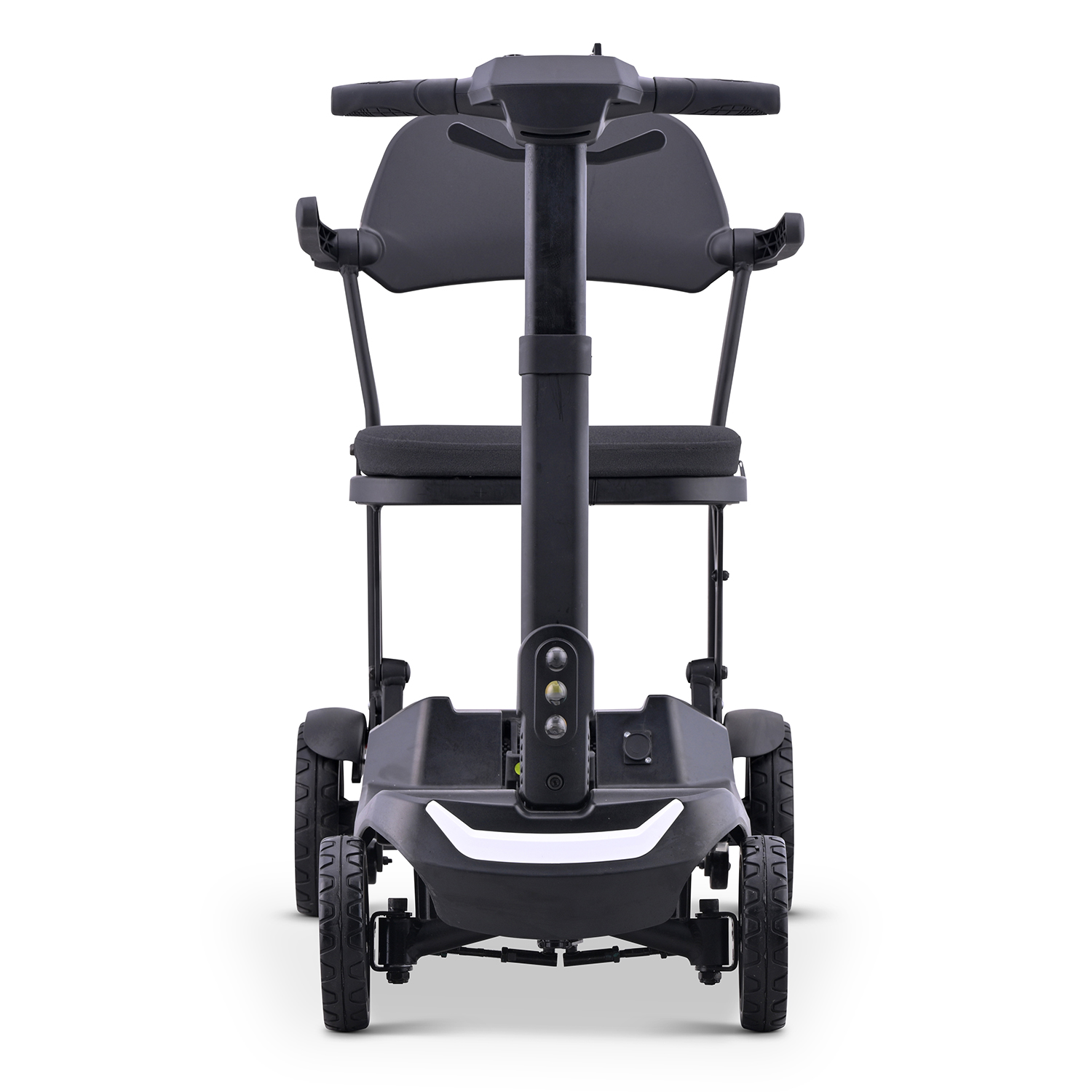

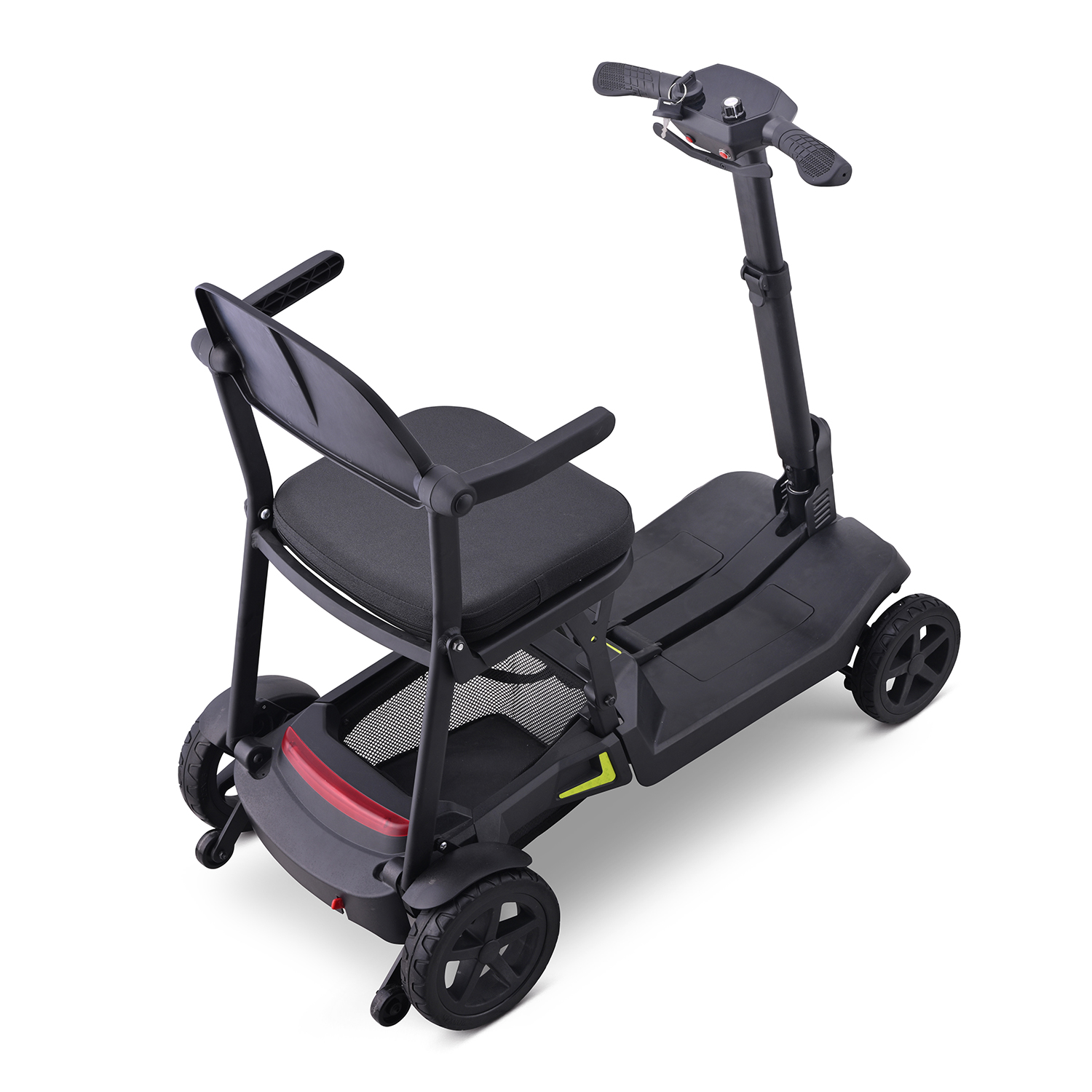

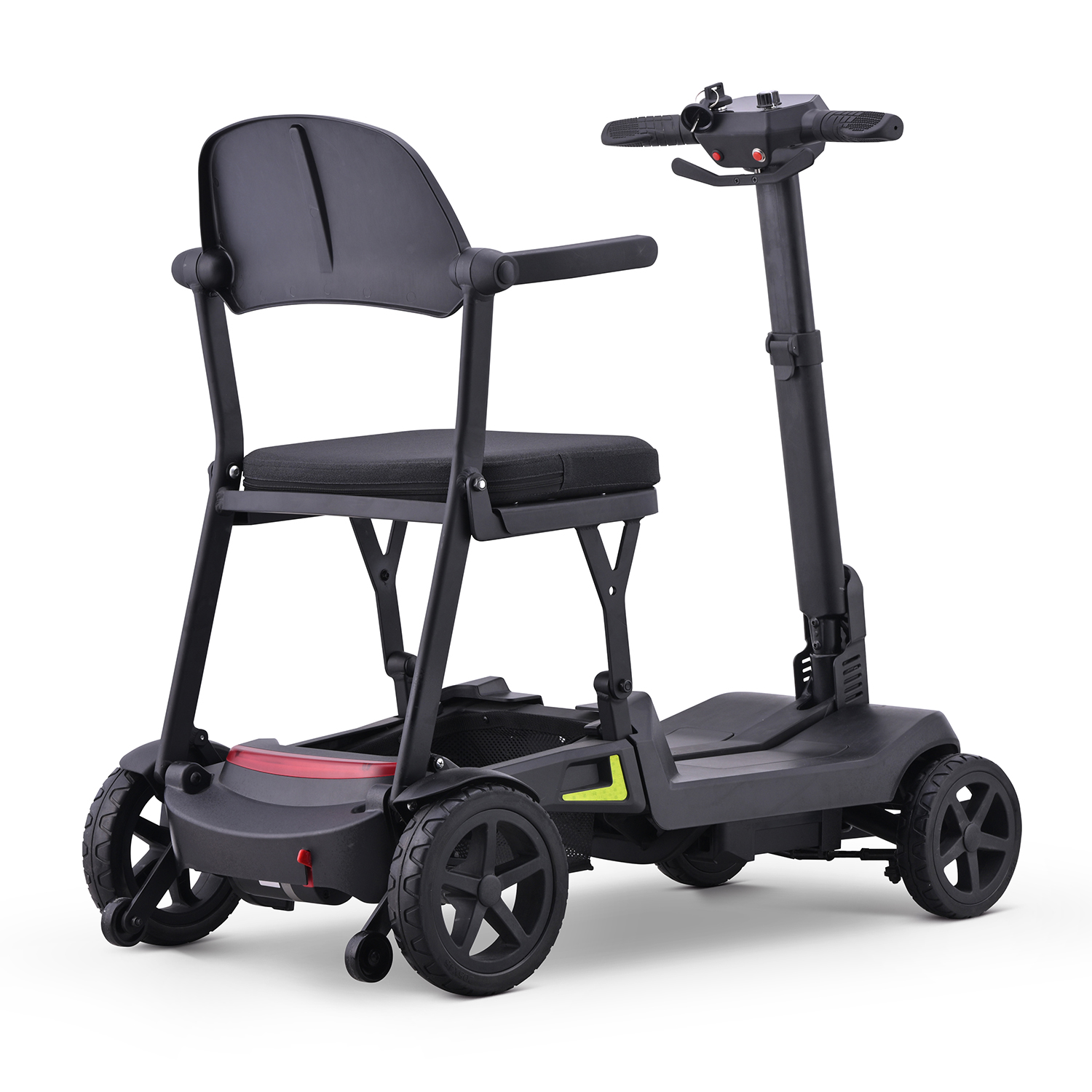

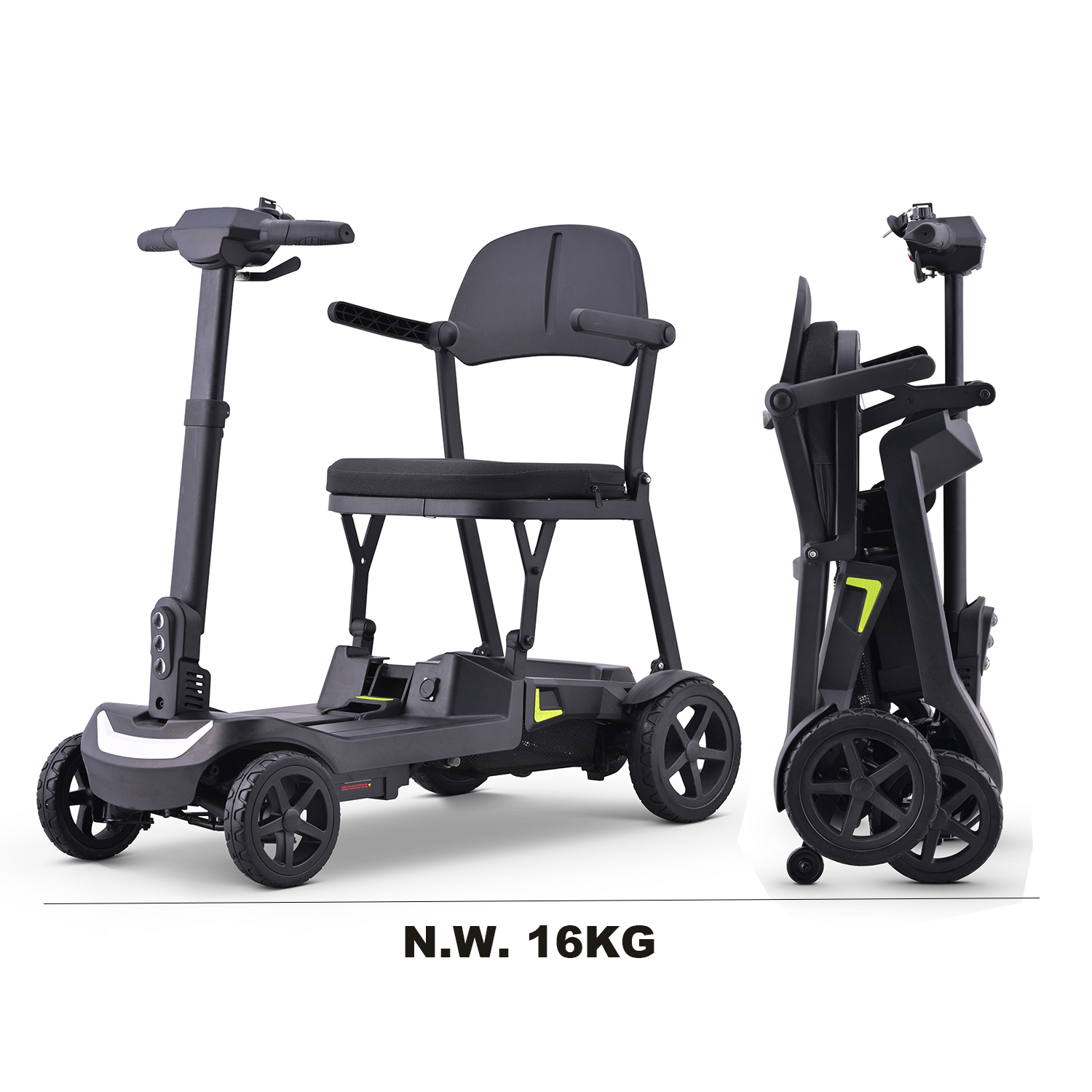

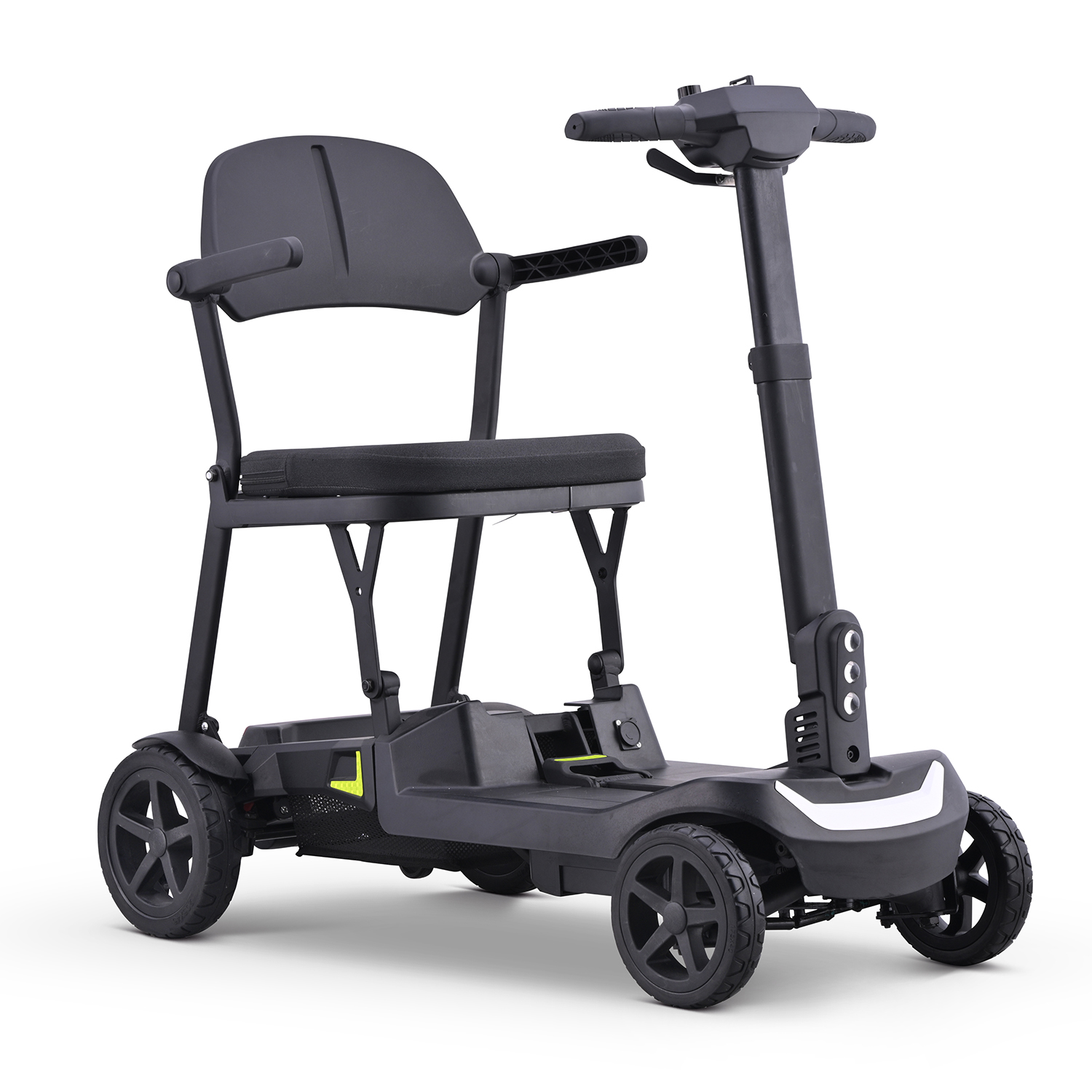

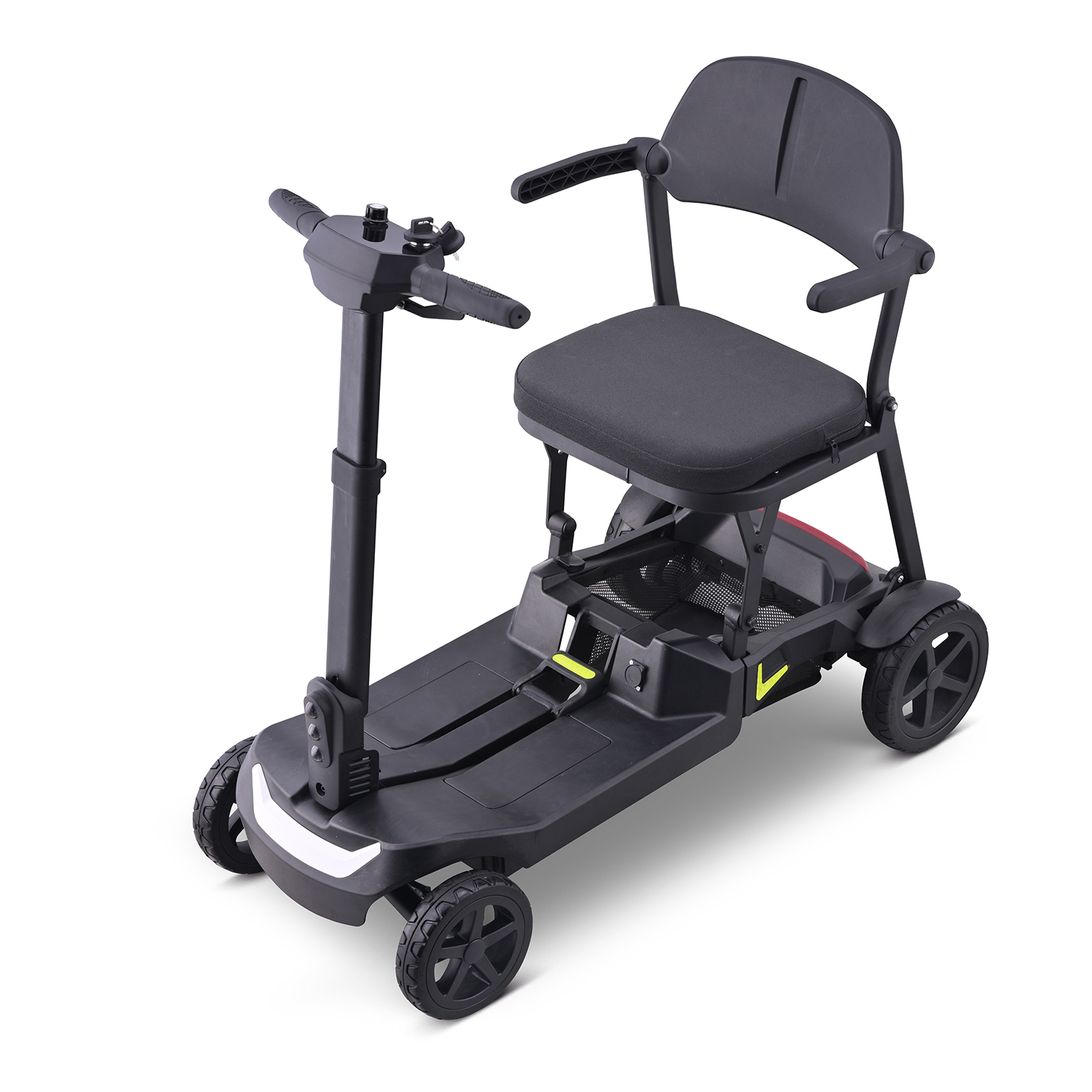

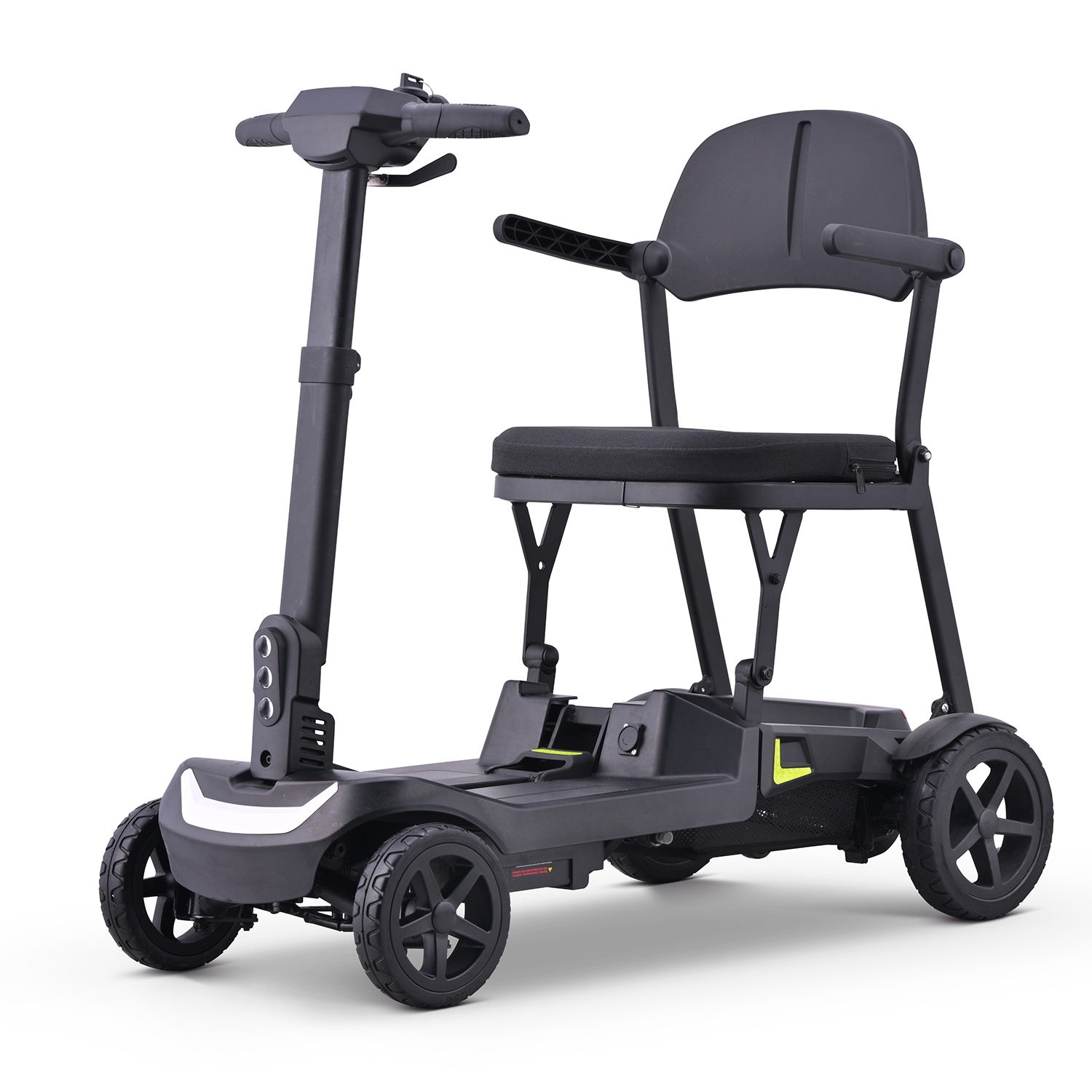

Topmedi TEW145 Foldable Electric Mobility Scooter 270W Brushless Motor 20-30km Range 16kg Lightweight Dual Battery
description1
Product Details
The Topmedi TEW205 luxury electric wheelchair is specifically designed for people with disabilities. This wheelchair's material selection and other everyday mobility features are designed with the user's needs in mind. In 2024, as a best-selling product, Topmedi showcased this electric wheelchair at MEDICA - World Forum for Medicine - International Trade Fair with Congress. The model received positive feedback from visitors at the exhibition and garnered several orders . As a popular product, this electric wheelchair boasts the following selling points:

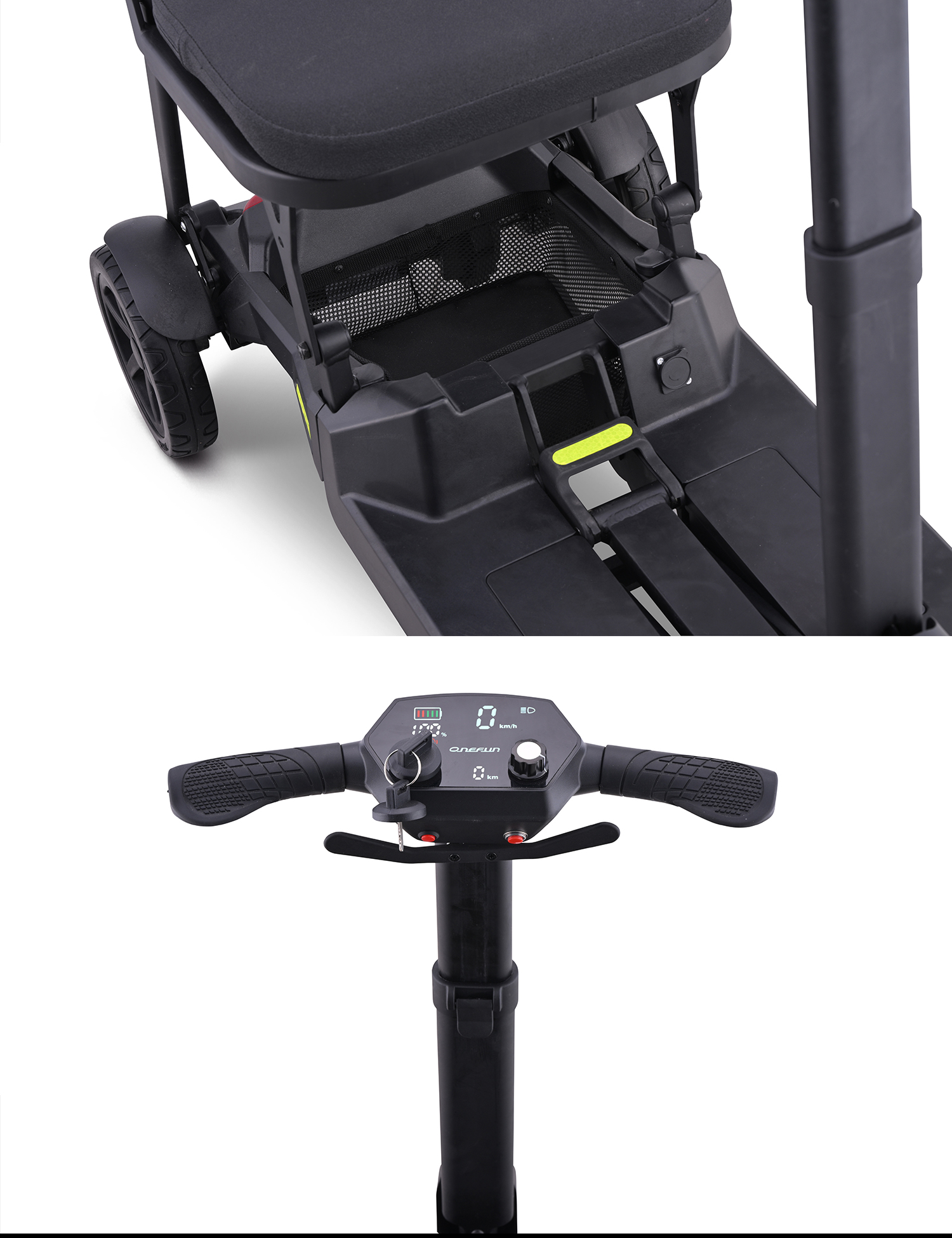

4.Smart Display
The controls on this wheelchair's LED display are very intuitive, with simple buttons. Users can see the battery level, speed, and status. There are no complicated operations, making it easy for users to use.
5.Electromagnetic brake
Even on slopes, electromagnetic brakes can still be used for stable braking, preventing accidental slippage and ensuring user parking safety.
6.Optional Bluetooth remote control
Family members or caregivers can remotely assist in operating the wheelchair in crowded or complex environments to deal with potential situations and ensure the patient's safety.
1.Material selection
This electric wheelchair features a full carbon fiber frame, making it extremely lightweight at only 12.5 kg (excluding battery), easy to move, and can be easily packed into a car trunk. The carbon fiber material is corrosion-resistant and scratch-resistant, extending the wheelchair's lifespan; the seat is made of genuine leather, making it easy to clean.
2.Ergonomic design
The TEW205 features a dynamic design that conforms to the natural curve of the spine, providing greater comfort and reducing stress and fatigue. A storage pocket is located on the back of the wheelchair for personal belongings. The armrests of this electric wheelchair are foldable, allowing for easy entry and exit, and seamless movement from the wheelchair to beds or chairs.
3.quick-release battery
This wheelchair comes standard with a 6AH battery, providing a range of 10-15 kilometers. A longer 10AH battery option is available, offering a range of 15-20 kilometers to meet various travel needs. The battery is very easy to remove without any tools, making it suitable for both short and long trips.
| Model | TEW145 |
| Factory Model | YL‑985S |
| Frame Material | Aluminium Alloy (946 × 500 × 90 mm) |
| Motor | Maotian Brushless 24V 270W |
| Battery Options | 24V 6.6Ah / 12Ah Lithium |
| Battery Configuration | Single or dual battery (removable) |
| Controller | 45A |
| Max Speed | 8 km/h |
| Range | 20 – 30 km (±25% variance) |
| Charger | 24V 2A |
| Braking Distance | ≤ 1500 mm |
| Static Stability | ≥ 9°, < 15° |
| Dynamic Stability | ≥ 6°, < 10° |
| Minimum Turning Radius | ≤ 1100 mm |
| Chassis Height | 90 mm |
| Seat Width / Depth / Height | 380 / 320 / 520 mm |
| Backrest Height | 330 mm |
| Armrest Height | 200 mm |
| Seat to Pedal Distance | 350 mm |
| Overall Length / Height | 946 / 900 mm |
| Rear Wheel Width | 505 mm |

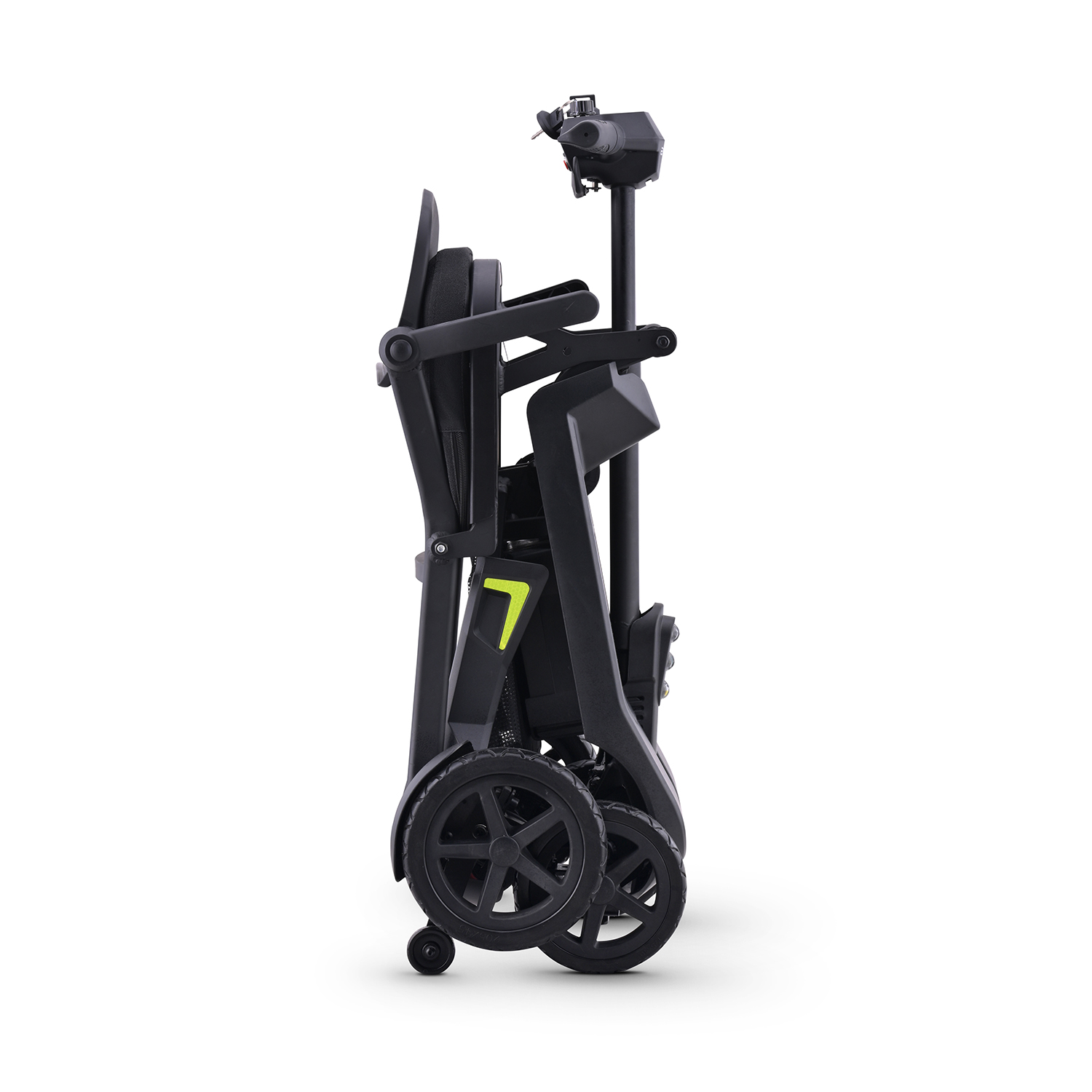

| Folded Size | 740 × 500 × 300 mm |
| Net Weight | 16 kg |
| Load Capacity | 100 kg |
| Wheels (Front / Rear) | 6 inch / 9 inch PU |
| Folding Method | Manual one‑key folding |
| Brake Type | Electronic brake |
| Additional Features | Storage basket, LED lights, detachable battery, dual‑battery capability |
| Container Loading (40'HQ) | 540 units |
