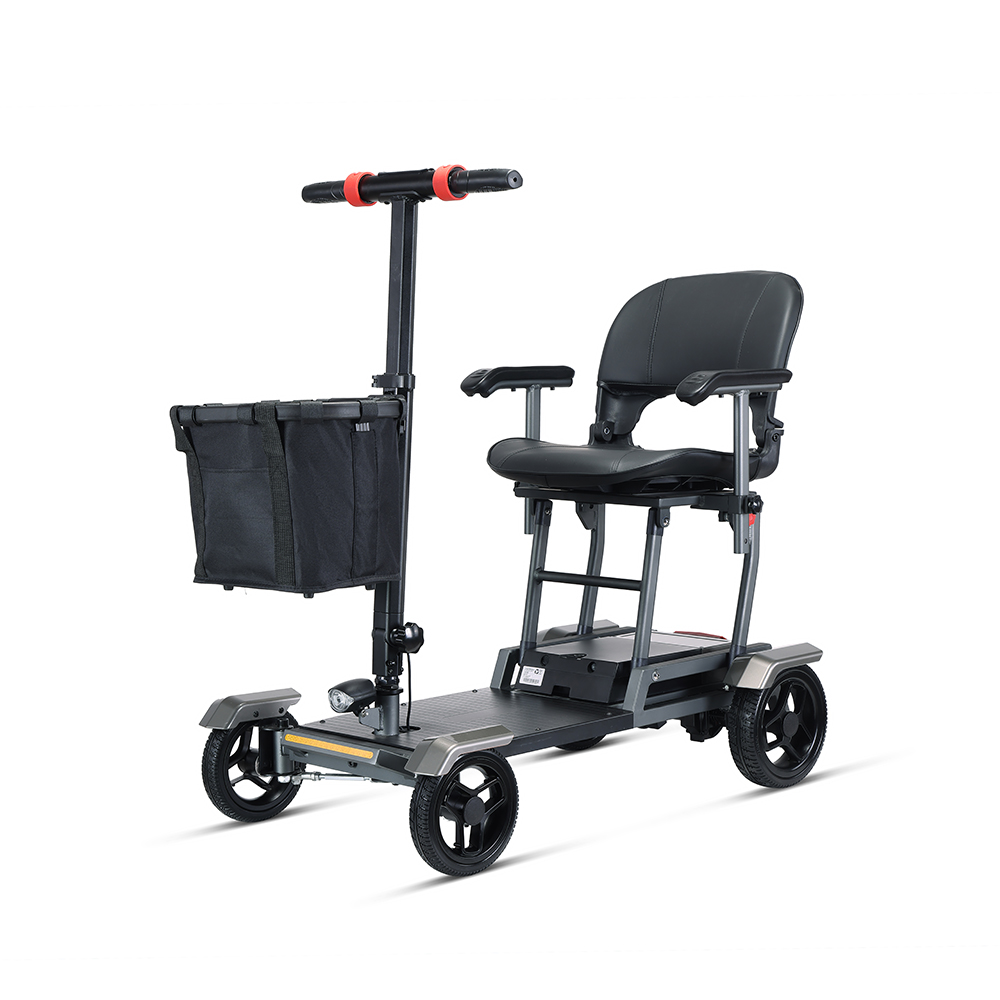

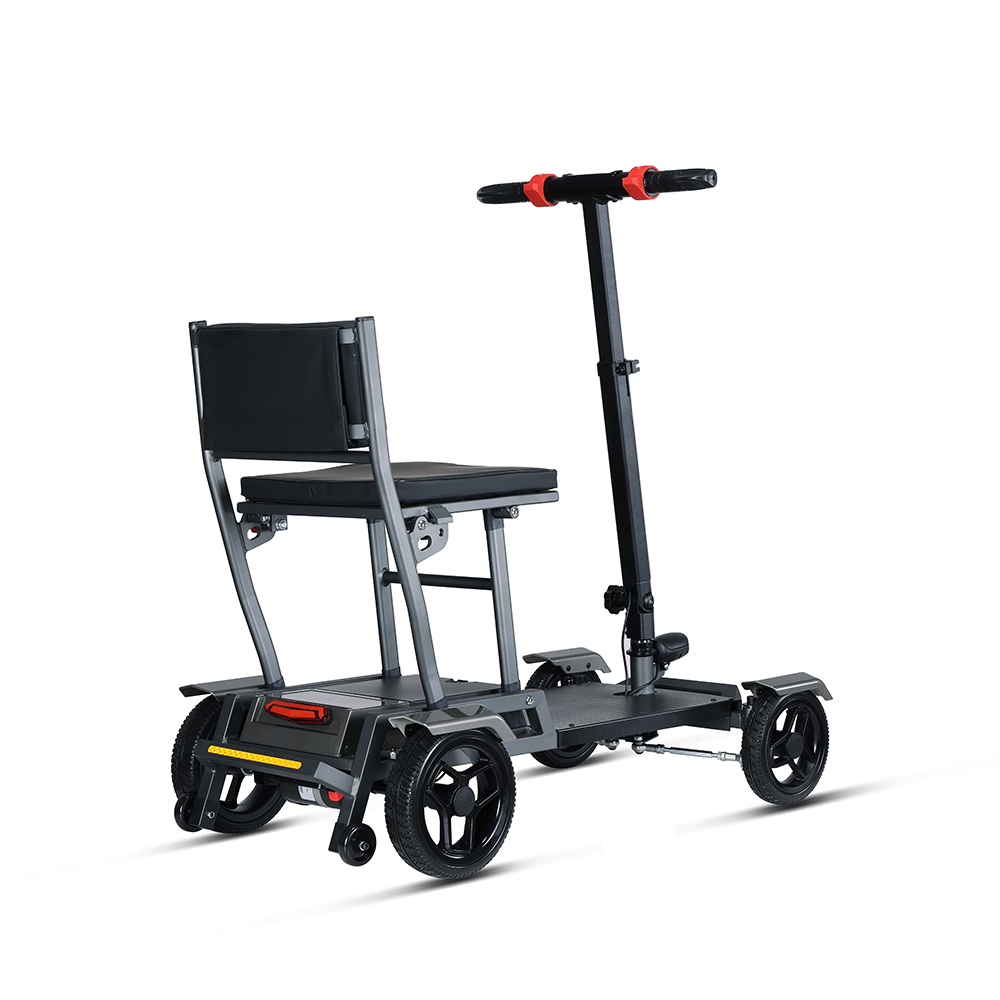

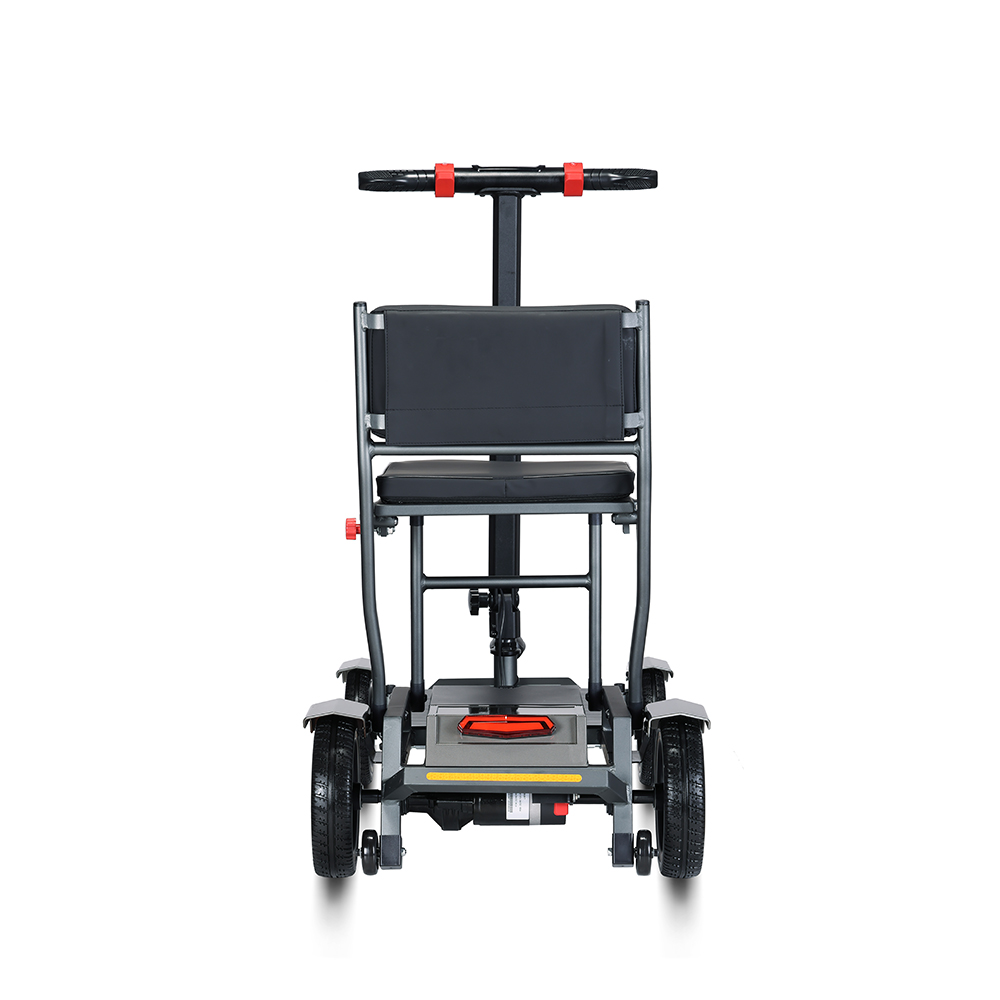

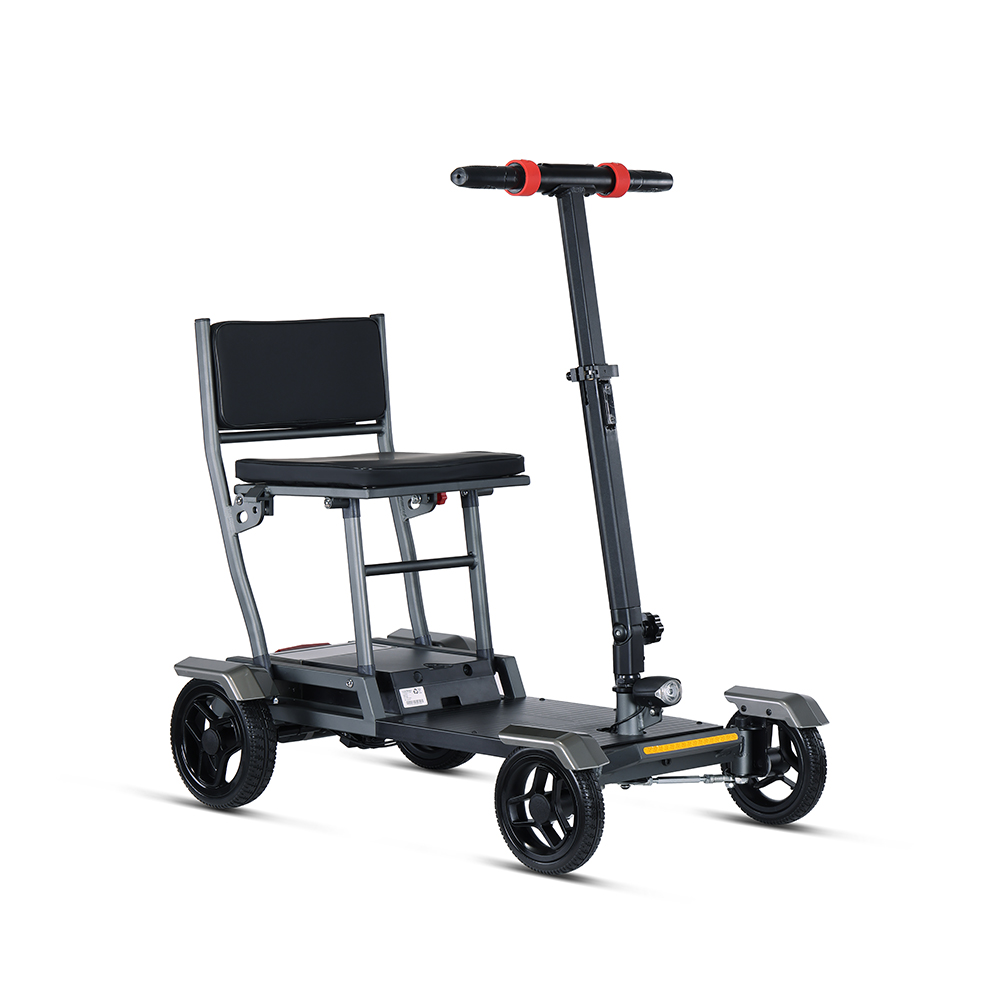

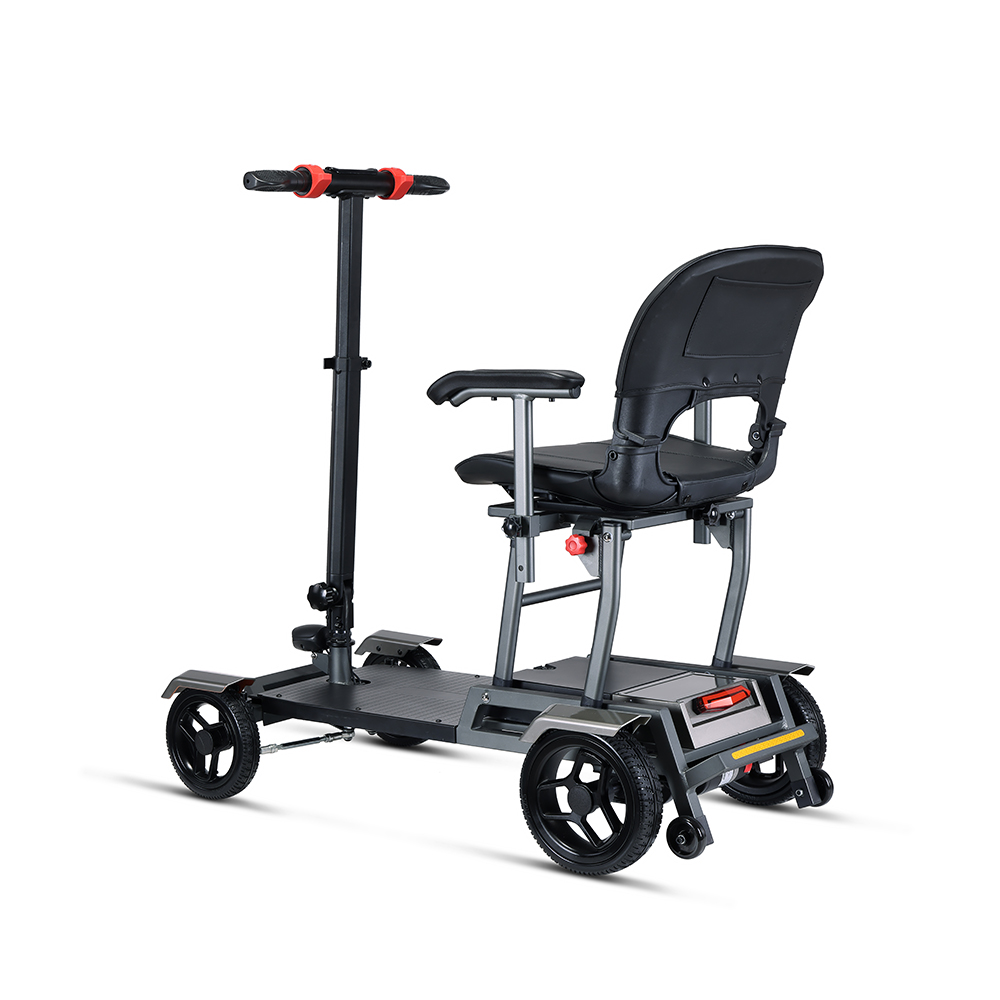

Topmedi TEW518 Foldable Electric Mobility Scooter 180W Motor 12Ah Battery 20km Range 120kg Capacity Detachable Seat
description1
Product Details
The Topmedi TEW205 luxury electric wheelchair is specifically designed for people with disabilities. This wheelchair's material selection and other everyday mobility features are designed with the user's needs in mind. In 2024, as a best-selling product, Topmedi showcased this electric wheelchair at MEDICA - World Forum for Medicine - International Trade Fair with Congress. The model received positive feedback from visitors at the exhibition and garnered several orders . As a popular product, this electric wheelchair boasts the following selling points:
4.Smart Display
The controls on this wheelchair's LED display are very intuitive, with simple buttons. Users can see the battery level, speed, and status. There are no complicated operations, making it easy for users to use.
5.Electromagnetic brake
Even on slopes, electromagnetic brakes can still be used for stable braking, preventing accidental slippage and ensuring user parking safety.
6.Optional Bluetooth remote control
Family members or caregivers can remotely assist in operating the wheelchair in crowded or complex environments to deal with potential situations and ensure the patient's safety.
1.Material selection
This electric wheelchair features a full carbon fiber frame, making it extremely lightweight at only 12.5 kg (excluding battery), easy to move, and can be easily packed into a car trunk. The carbon fiber material is corrosion-resistant and scratch-resistant, extending the wheelchair's lifespan; the seat is made of genuine leather, making it easy to clean.
2.Ergonomic design
The TEW205 features a dynamic design that conforms to the natural curve of the spine, providing greater comfort and reducing stress and fatigue. A storage pocket is located on the back of the wheelchair for personal belongings. The armrests of this electric wheelchair are foldable, allowing for easy entry and exit, and seamless movement from the wheelchair to beds or chairs.
3.quick-release battery
This wheelchair comes standard with a 6AH battery, providing a range of 10-15 kilometers. A longer 10AH battery option is available, offering a range of 15-20 kilometers to meet various travel needs. The battery is very easy to remove without any tools, making it suitable for both short and long trips.
| Model | TEW518 |
| Frame Material | Aluminium Alloy |
| Handlebar | Aluminium folding (telescopic) |
| Motor | Maotian 24V 180W Brushless Rear Axle Motor |
| Motor Features | Brushless, electromagnetic brake |
| Battery | 24V 12Ah Lithium (removable) |
| Controller | Zhichi Brushless Controller with cornering speed reduction |
| Max Speed | 3 km/h (speed 1) / 5 km/h (speed 2) / 7 km/h (speed 3) |
| Reverse Speed | 3 km/h |
| Range | ≤ 20 km |
| Climbing Angle | 9° |
| Overall Length | 980 mm |
| Overall Height | 850 mm |
| Overall Width | 560 mm |
| Seat Width / Depth | 430 mm / 390 mm |
| Seat Height | 430 mm |
| Backrest Height / Width | 360 mm / 430 mm |

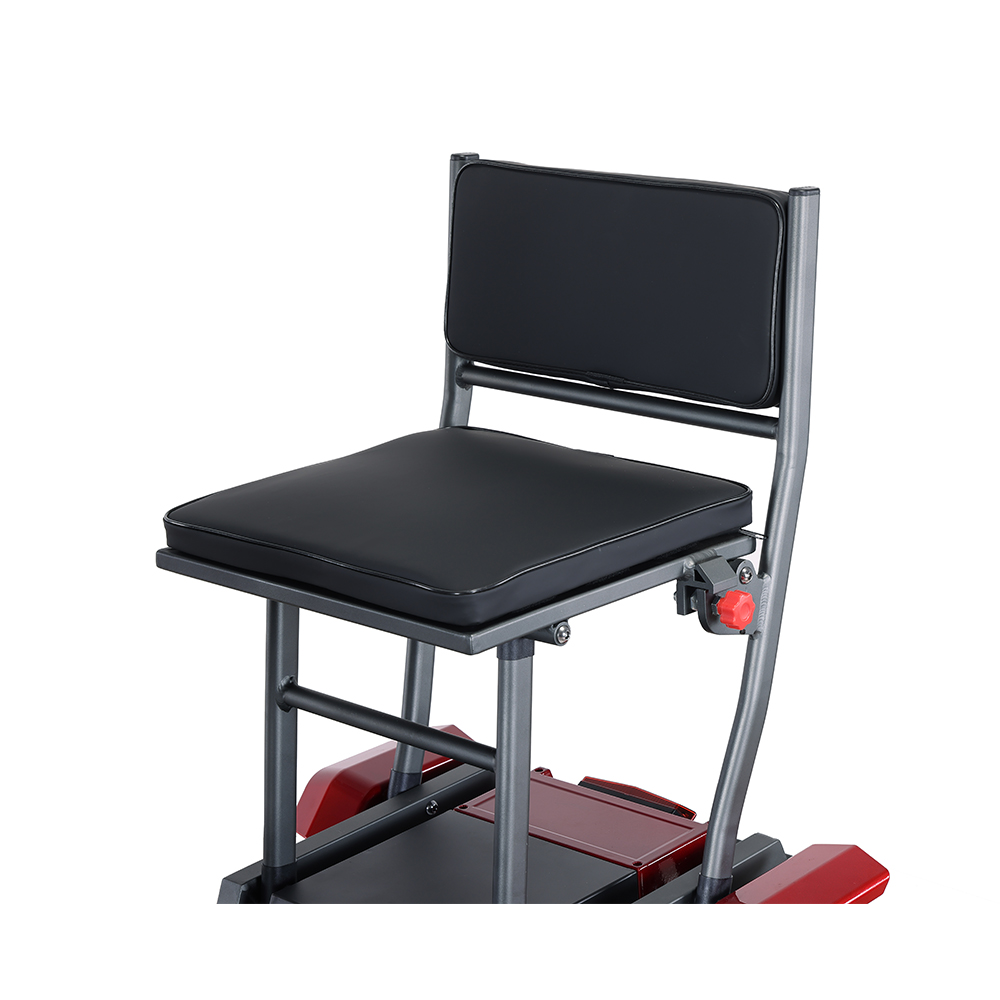

| Seat | Detachable, faux leather cushion |
| Armrests | Adjustable and removable |
| Front Wheel | 8 inch magnesium alloy hub with solid tyre |
| Rear Wheel | 9.5 inch magnesium alloy hub with solid tyre |
| Folded Size (L×W×H) | 980 × 560 × 330 mm |
| Net Weight | 20 kg |
| Gross Weight | 25 kg |
| Load Capacity | 120 kg |

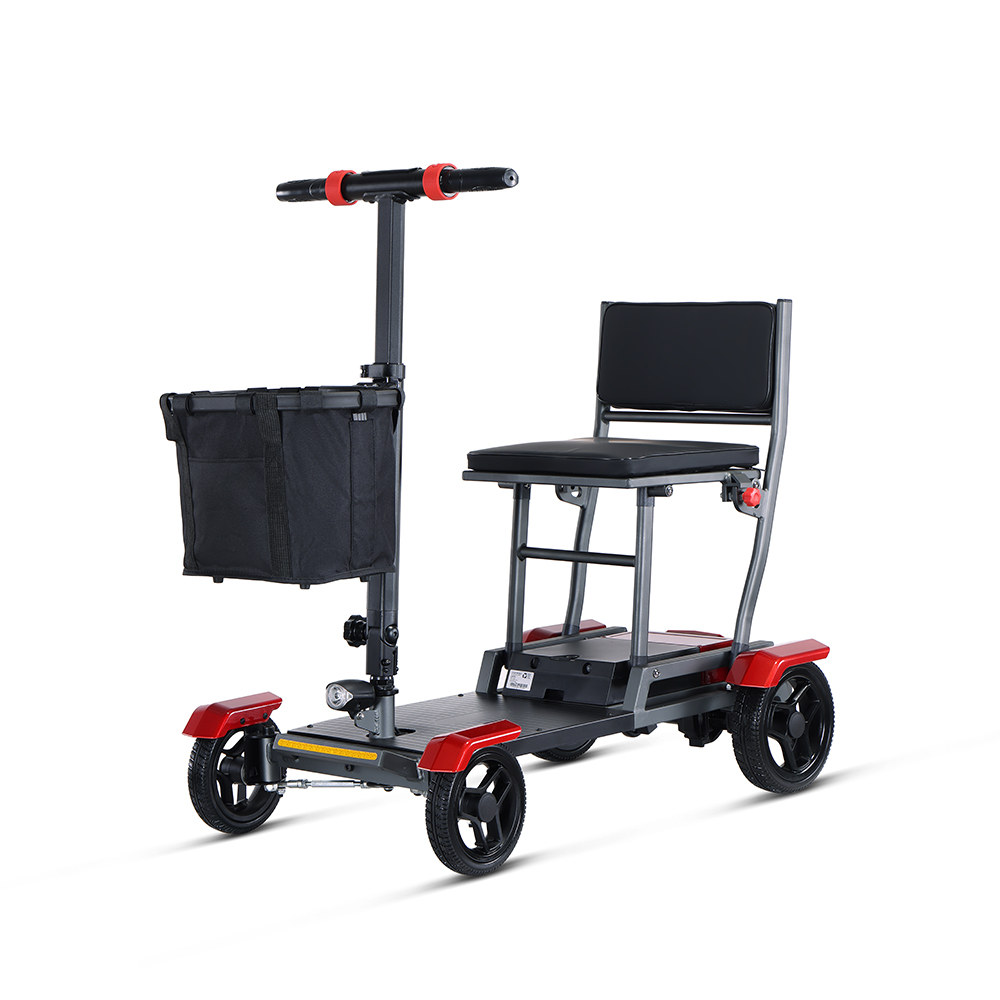

| Basket | Detachable |
| Headlight | Headlight + horn |

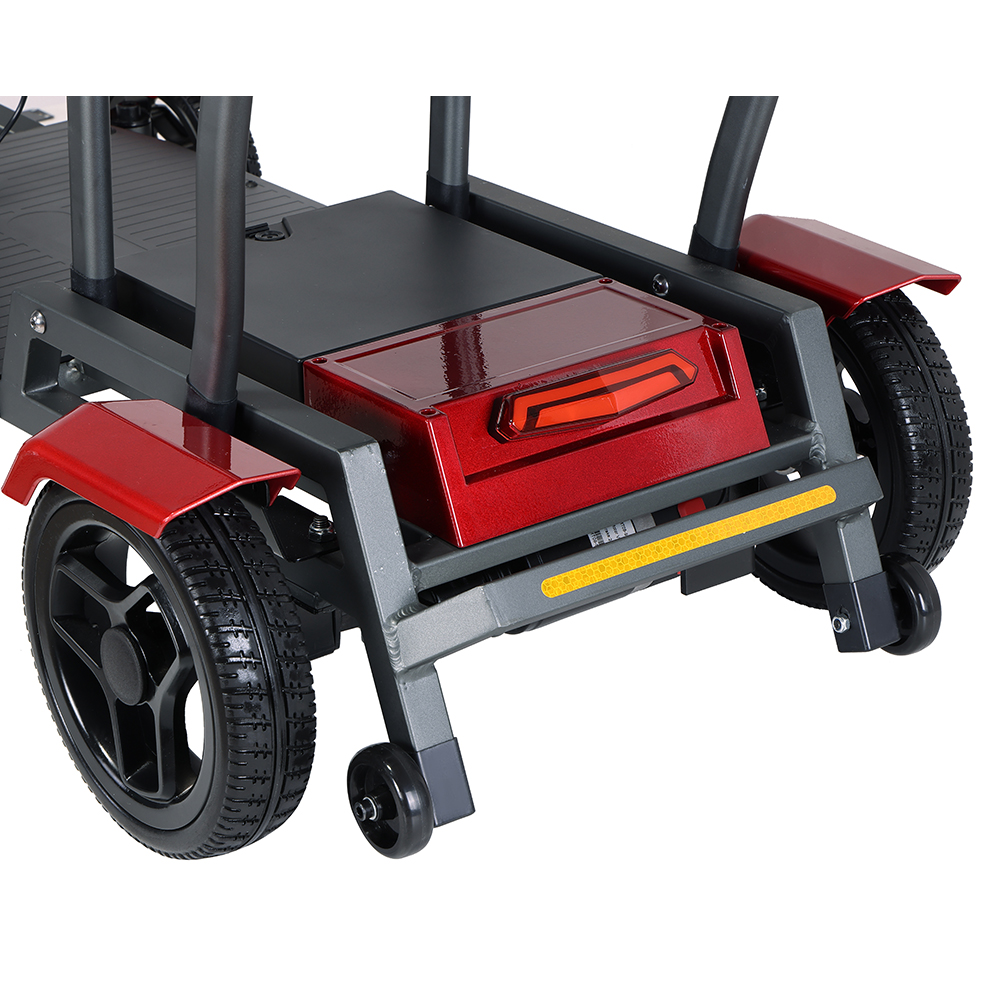

| Rear Lights | Left/right turn signals, night light |

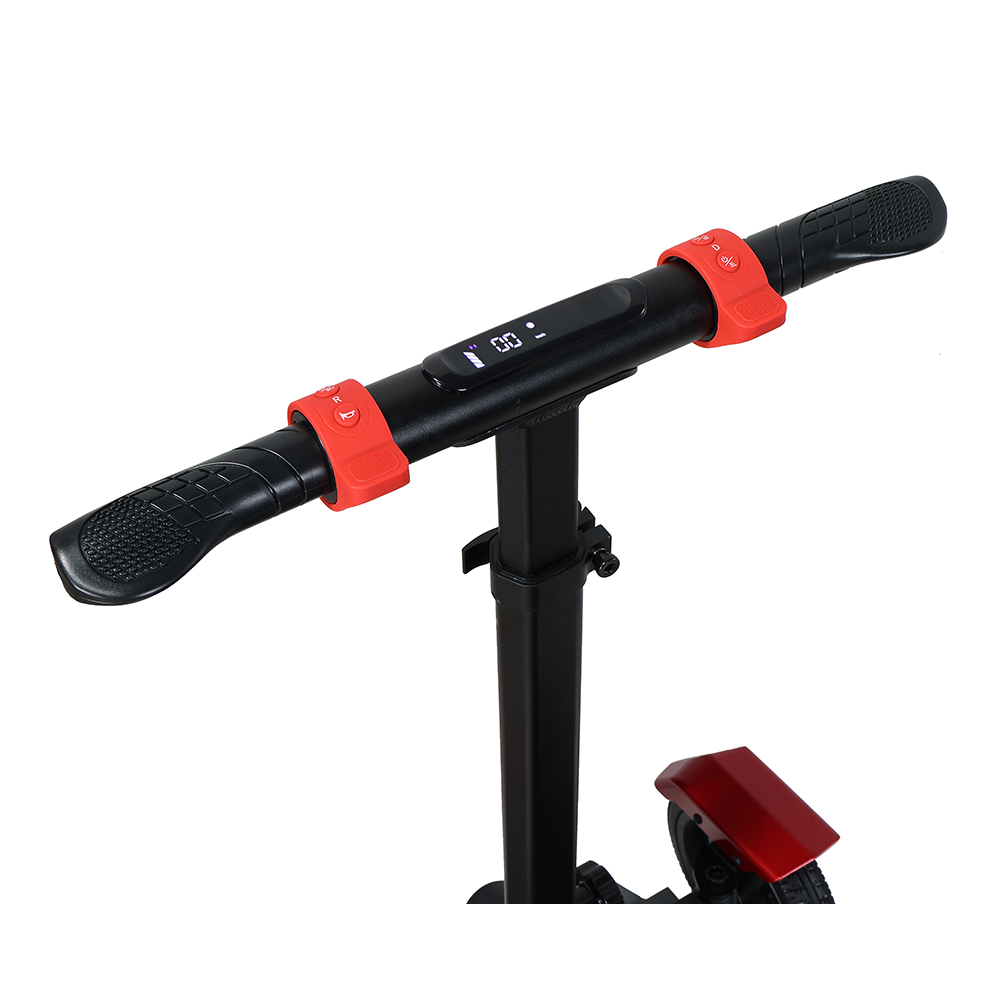

| Display | LCD with NFC activation, speed display, turn signal indicator, km/mile switching, electromagnetic brake unlock |
| Controls | Left finger paddle (reverse) / Right finger paddle (forward) |
