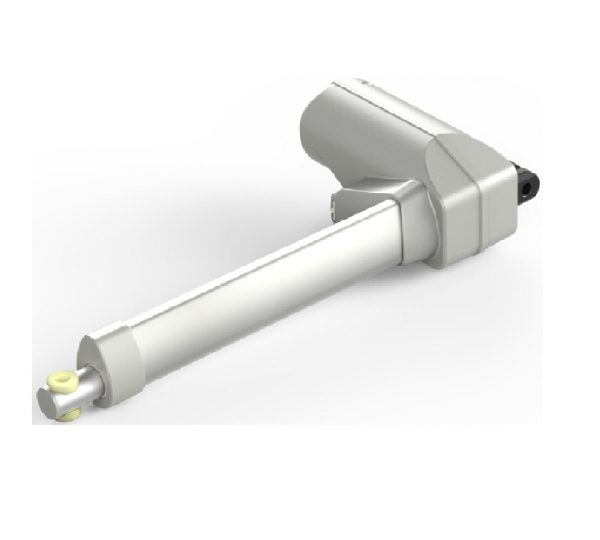

Topmedi Linear Actuator TMMK31

Description

TMMK31 is a quiet and powerful actuator up to 6000N thrust, designed for use in medical bed application.

Technical information

· Input voltage: 24V DC

· Max. load: 6000N (Push) / 3000N (Pull)

· Typical speed at no load: 5.5mm/sec

· Typical speed at full load: 3.8mm/sec (6000N load)

· Stroke: 50 ~ 400mm

· Noise level: ≦50dB

· IP level: IPX6

· Preset limit switches

· Aluminum outer tube

· Detachable cable plug

· Color: Light gray RAL 7035

· Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

· Operating ambient temperature: +5°C ~ +40°C

Option

· Positioning signal feedback with Hall effect sensor x 2

· Safety nut (in push direction)

· Mechanical push only extension tube
