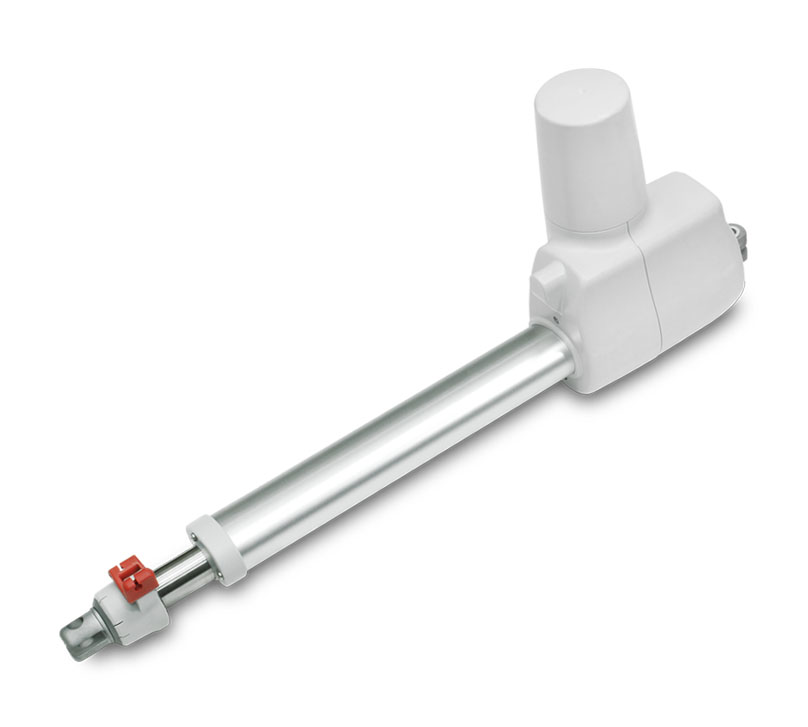

Topmedi Linear Actuator TMMD100

Description

TMMD100 patient lifts actuator is a quiet and powerful actuator up to 10,000N thrust, designed for a variety of furniture and medical care applications such as patient lifts and medical beds. Finding reliable quiet actuators? TMMD100 patient lifts actuator is your best choice!

Technical information

· Input voltage: 24V DC

· Max. load: 10,000N (push) / 6,000N (pull)

· Stroke: 100 ~ 600 mm

· Noise level: ≦52dB

· IP Protection level: IPX4

· Rear connector’s pivot orientation can be chosen in every 30 degrees.

· Preset limit switches

· Aluminum outer tube

· Stainless extension tube

· Color: Light gray RAL 7035

· Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

· Ambient operation temperature: +5°C ~ +40°C

· Certified: CE Marking, EN 60601-1-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8, UL60601

Option

· Mechanical push only extension tube

· Safety nut (in push direction)

· QR2 quick release: To retract actuator quickly by pinching the QR2 grip while emergency.

· MR3 manual release: To retract actuator slowly and put down the patient safely by turning the MR3 knob with hand when losing power in the application of patient hoist.

· IPX6 Protection level
