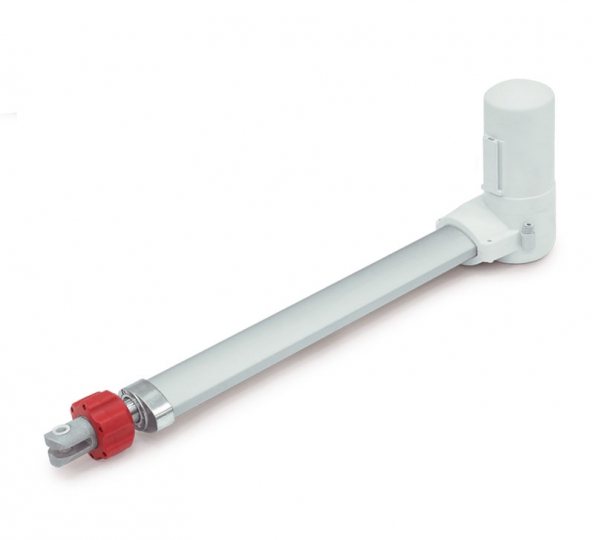

Topmedi Linear Actuator TMMD82

Description

TMMD82 is a quiet and powerful actuator up to 8000N thrust, which is designed for use in a variety of medical and home care applications such as patient hoist and bed.

Technical information

· Input voltage: 24V DC

· Max. load: 8000N (push) / 6000N (pull)

· Typical speed at no load: 8.2 mm/sec

· Typical speed at full load: 4.8 mm/sec (8000N load)

· Stroke: 50 ~ 400 mm

· Noise level: ≦50dB

· IP Level: IPX4, IPX6

· Rear connector’s pivot oritention can be chosen in every 30 degrees

· Preset limit switches

· Steel extension tube

· Color: Light gray RAL 7035

· Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

· Ambient operation temperature: +5°C ~ +40°C

· Certified: CE Marking, Medical Devices Directive 93/42/EEC

Option

· Positioning signal feedback with Hall effect sensor x 2

· Mechanical push only extension tube

· Safety nut (in push direction)

· MR3 manual release: To retract actuator slowly and put down the patient safely by turning the MR3 knob with hand when losing power in the application of patient hoist.
