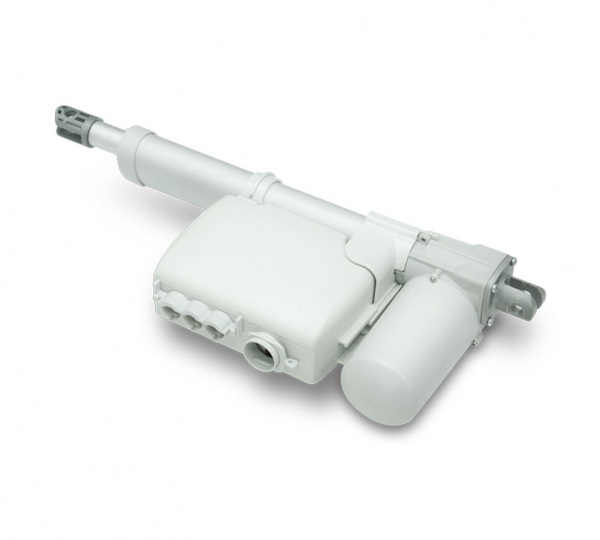

opmedi Linear Actuator TMMD7

Description

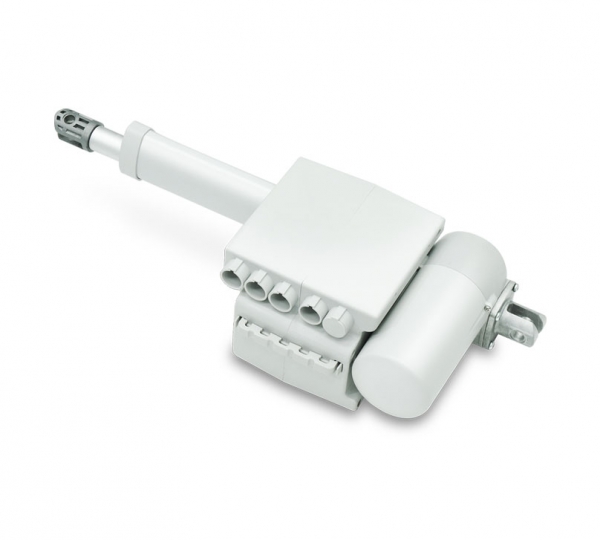

TMMD7 is a quiet and powerful actuator up to 6000N thrust, designed for medical and homecare application. TMMD7 is widely compatible with Moteck control boxes. Among them, TMMD7C and CB2P can be attached to TMMD7 as a perfect combination.

Technical information

· Input voltage: 12V DC / 24V DC

· Max. load: 6000N (push) / 4000N (pull)

· Max. speed at no load: 16.6 mm/sec (typical value)

· Speed at full load: 2.9 mm/sec (typical value @6000N loaded)

· Stroke: 50 ~ 300mm

· Noise level: ≦50dB

· IP level: IP54

· Color: Light gray RAL 7035

· Preset limit switches

· Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

· Operating ambient temperature: -20°C ~ +65°C

· Certified: CE marking, EN 60601-1-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8

Option

· Positioning signal feedback with Hall effect sensor x 1

· Positioning signal feedback with Hall effect sensor x 2

· Mechanical push only extension tube

· Safety nut (in push direction)

· Pivot orientation 90° turned for rear connector

· Mechanical brake
