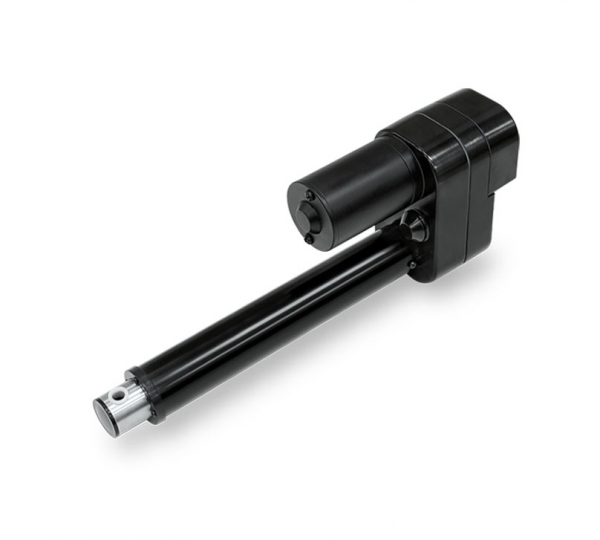

Topmedi Linear Actuator TMLD60

Description

TMLD60 is a robust linear actuator designed for furniture and medical care application. Both of the gearbox and rear connector are made of aluminum alloy. It can be without inner / outer tubes, and use the bare screw nut as front connector, which allows bigger stroke in confined spaces.

Technical information

· Input voltage: 24V DC

· Max. load: 6000N (push/pull)

· Typical speed at no load: 8.4 mm/sec

· Typical speed at full load: 4.9 mm/sec

· Stroke: 100 ~ 400 mm

· Aluminum alloy outer tube and gearbox

· Preset cam type limit switches

· Noise level: ≦52dB

· Duty cycle: 10%, max. 2 min. continuous operation.

· Ambient operation temperature: -10°C ~ +60°C

· IP Protection level: IPX2

· Certified: CE Marking, EN 60601-1-2, IEC 60601-1-2

Option

· Standard / fast version

· Without extension tube and outer tube

· Rear connector turns 90° in pivot orientation

· Black color outer tube and gearbox
