Topmedi Linear Actuator TMBD23

Description

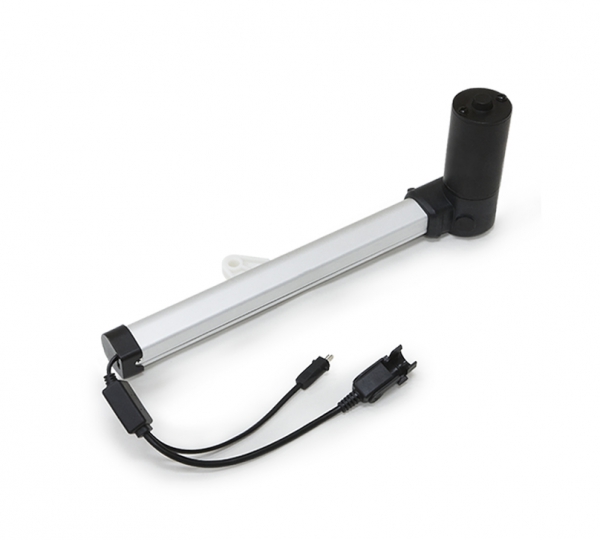

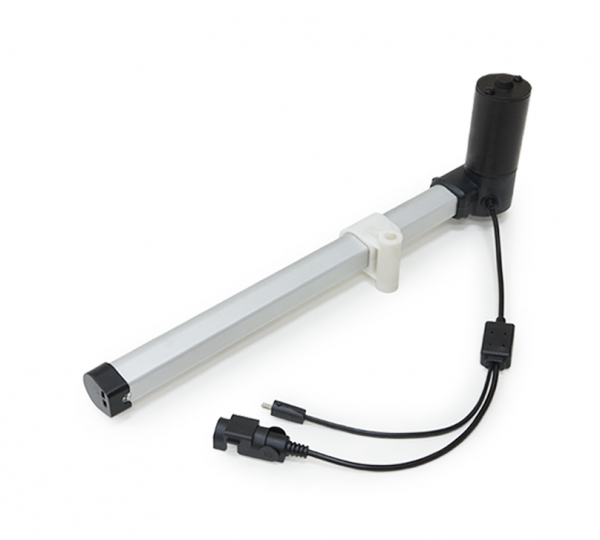

TMBD23 is a quiet and robust actuator, with its speed well-maintained either with or without load. Besides, TMBD23 can be presented with its cable coming either on the front or the rear end, depending on your choice, and is designed to be connected to the handset and power supply to make up a simple system without control box for furniture applications like recliner sofa.

Technical information

· Input voltage: 24V DC

· Max. load: 1500N (Push / Pull)

· Typical speed at no load: 40 mm/sec

· Typical speed at full load: 33 mm/sec (1500N load)

· Stroke: 40 ~ 230 mm

· Noise level: ≦53dB

· Color: Black

· Preset limit switches

· Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

· Ambient operation temperature: -20°C ~ +65°C

· Certified: CE Marking, EMC Directive 2014/30/EU

Option

· Location of cable outlet

· Different cable length

· Pivot orientation 90° turned for rear connector

· There are 3 plastic nut type can be chosen
