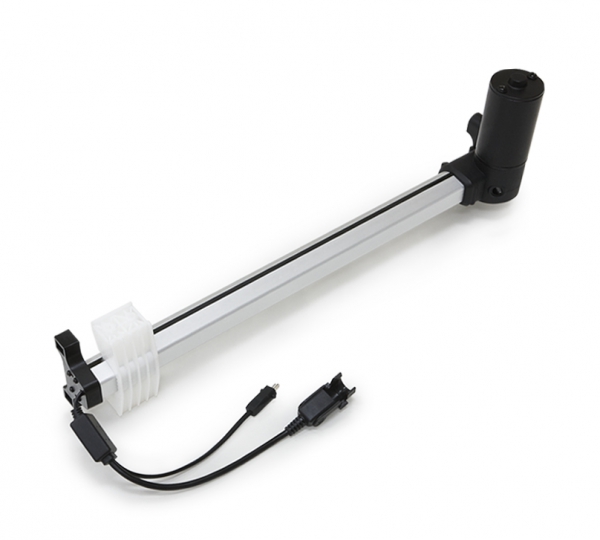

Topmedi Linear Actuator TMBD21

Description

TMBD21 is a quiet and rapid actuator, having a speed up to 42mm/s under 1500N, and with its speed well-maintained either with or without load. It features its two mounting points at both tube front and gearbox, while the spindle nut steers the movement parts of furniture. Users can also choose front end outlet or rear end outlet according to their needs. BD21 is very suitable for furniture applications, such as electric recliner sofa.

Technical information

· Input voltage: 24V DC

· Max. Load: 2000N (Push/Pull)

· Max. Speed at no load: 52 mm/sec (typical value)

· Max. Speed at full load: 42 mm/sec (typical value @1500N loaded)

· Stroke: 50~333mm

· Noise level: ≦55dB

· Preset limit switches

· Duty cycle: 10%, max. 2 min. continuous operation in 20 min.

· Ambient operation temperature: -20°C ~ +65°C

· Certified: CE Marking, EMC Directive 2014/30/EU, UL 962

Option

· Location of cable outlet (Refer to page 6)

· There are 2 plastic nut type can be chosen

· Positioning signal feedback with Hall effect sensor x 2
