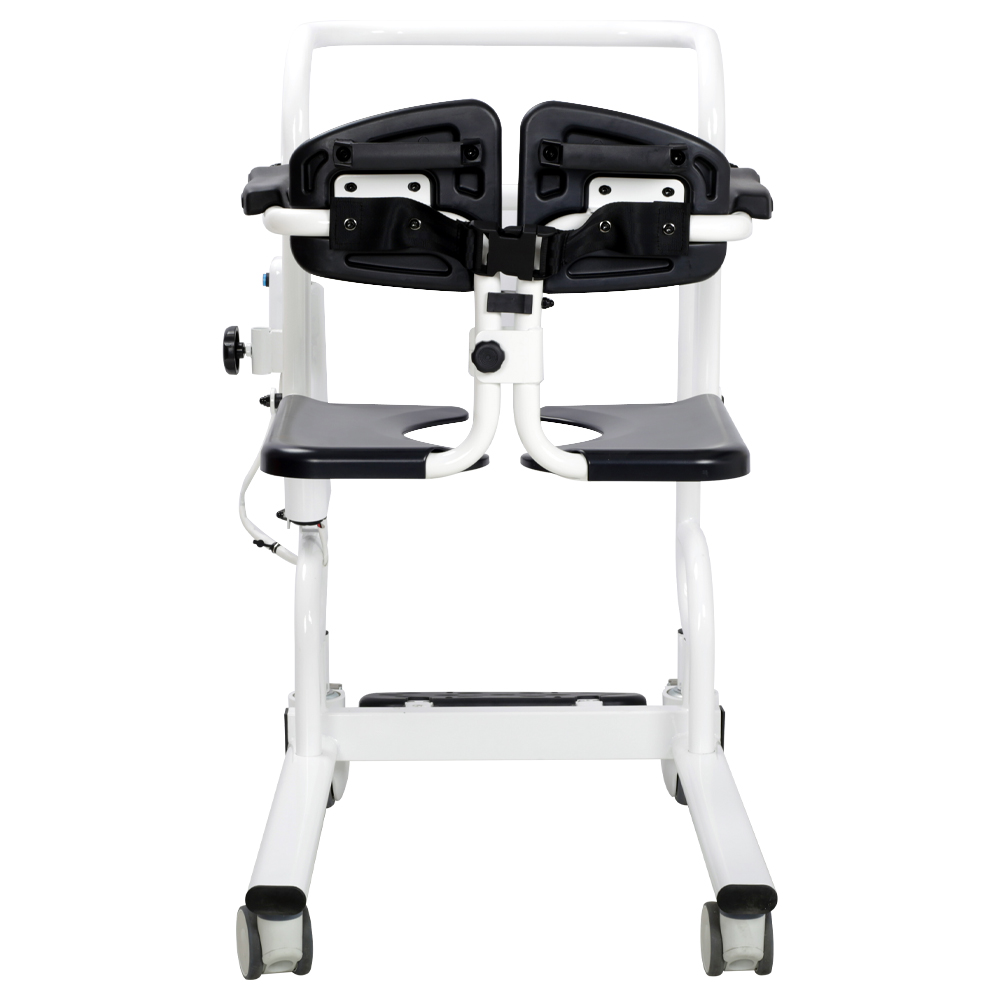

Product

TCM-01H

2022-06-30handler2528

Product Description
1. Lifting method: electric lifting
2. Product material Materials: The whole frame is made of 2.0 thick steel pipe
3. Wheels: medical mute wheels
4. Pipe thickness: 2.0mm
5. Brake: Foot braking Brake type: foot braking
6. Battery: 24V 7.5Ah (up and down theoretically used for about 30 times under load-bearing conditions)

Overall width

60

Overall Length

81

Overall Height

83.5-100.5

Seat width

43

Seat depth

37.5

Seat Height

40-57

Real wheel dia.

3"

Front-wheel dia.

5"

Loading capacity

100kg

N.W.

27.6kg

G.W.

30kg
